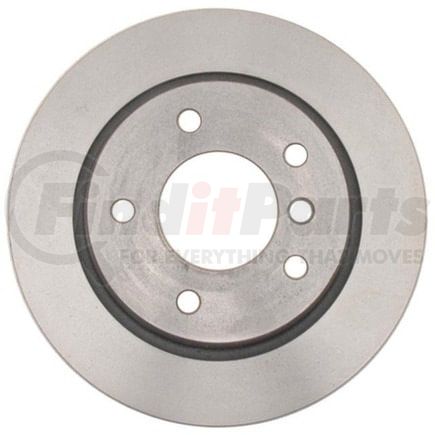

RAYBESTOS 980195 Raybestos Specialty - Street Performance Brake Rotor

MSRP: $65.79

$55.49

Save $10.30

Limited availability at this price!

In Stock

Get it by Thursday, Mar 19
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

RAYBESTOS 980195 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

2000-1998 BMW 323i Rear, 2000 BMW 323Ci Rear, 1998 BMW 328i Rear, 2005-2001 BMW 320i Rear

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 980195 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.953 IN
Center Hole Diameter 75 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.685 IN
Discard Thickness 17.4 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.724 IN
Mounting Bolt Hole Circle Diameter 120 MM
Mounting Bolt Hole Diameter 0.575 IN
Mounting Bolt Hole Diameter 14.6 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.748 IN
Nominal Thickness 19 MM
Outside Diameter 10.866 IN
Outside Diameter 276 MM
Overall Height 2.362 IN
Overall Height 60 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) DE
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352198490

RAYBESTOS 980195 Cross References

BrandPart Number
829352198490, 120.34044
ADVANCE AUTO PARTSYH145474, YH145474C
ALTROM IMPORTS34211165211
ATE BRAKE PRODUCTS419107, SP19107
AUTOZONE34228, 34228DG
BENDIX145474
BMW34211165211, 34216864903
BOSCH15010109
BRAKEBEST15010109, 980195, 980195R, 980195RGS
BREMBO09.7727.10, 09.7727.11, 25516
Brembo09.7727.1X, 09.7727.75
CENTRIC120.34044, 121.34044, 125.34044, 125.34044CRY, 126.34044CSL, 126.34044CSR, 126.34044SL, 126.34044SR, 127.34044L, 127.34044R, 128.34044L, 128.34044R, 320.34044H
CONTINENTAL-CONTITECHCW19107
Casting Numbers326197
Centric Parts120.34044, 121.34044, 125.34044, 125.34044CRY, 126.34044CSL, 126.34044CSR, 126.34044SL, 126.34044SR, 127.34044L, 127.34044R, 128.34044L, 128.34044R, 320.34044H
DURA CORPBR34228
DuraGoBR34228
MIGHTY DISTRIBUTING SYSTEM34228
MONROE BRAKESBD125574
NAPA BRAKESSDK6163, TSR2767
NEOTEK106667GF
NEWTEK AUTOMOTIVE34228
Newtek Automotive USA34228
PILENGAV127
PROMAX14-34228
PRONTOBR34228
QUALIS34228
QUINTON HAZELLBDC4536
TRWDF2767S
UAP34228
Ultra BrakeBM-739
VAICOV2080042
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX51534
WABCOPS125574
WABCO - ArchivedPS125574
WAGNERBD125574, BD125574E
WAGNER BRAKEBD125574, BD980195
WINHERE442789
WORLDPAC1407-78795
Wagner BrakeBD125574E

RAYBESTOS 980195 Fits Vehicles

  • BMW 320i (1994-1995, 2001-2005)
  • BMW 328i (1996-1999)
  • BMW 323i (1998-2000)
  • BMW 323Ci (2000)
