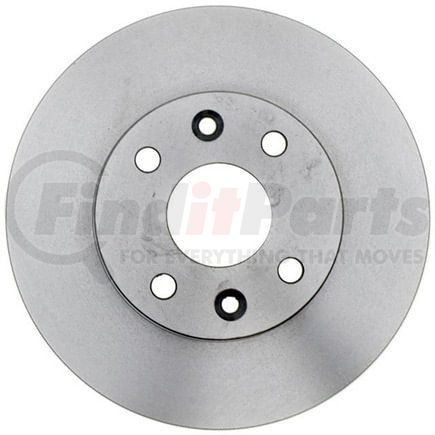

RAYBESTOS 980109 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2000-1994 Kia Sephia Front, 2000 Kia Spectra Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980109 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.245 IN |
| Center Hole Diameter | 57 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 9.56 IN |
| Outside Diameter | 242.8 MM |
| Overall Height | 1.717 IN |
| Overall Height | 43.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352277652 |
RAYBESTOS 980109 Cross References
| Brand | Part Number |
|---|---|
| 801873MM, 829352277652 | |
| ADVANCE AUTO PARTS | 200497, YH200497, YH200497C |
| AUTOZONE | 44304 |
| BOSCH | 32010860 |
| BRAKEBEST | 32010860, 980109, 980109R, 980109RGS |
| BREMBO | 25899 |
| CENTRIC | 120.50007, 121.50007, 126.50007SL, 126.50007SR, 127.50007L, 127.50007R |
| Casting Numbers | 211562-C |
| Centric Parts | 120.50007, 121.50007, 126.50007SL, 126.50007SR, 127.50007L, 127.50007R |
| DURA CORP | BR31358 |
| DuraGo | BR31358 |
| KIA | 0K2AA33251C, 0K2AZ33251 |
| MIGHTY DISTRIBUTING SYSTEM | 31358 |
| NEWTEK AUTOMOTIVE | 31358 |
| Newtek Automotive USA | 31358 |
| PROMAX | 14-31358 |
| PRONTO | BR31233 |
| Qualis | 31358, 44304 |
| UAP | 31358 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51731 |
| WAGNER | BD126183 |
| WAGNER BRAKE | BD126183 |
| WINHERE | 4421010 |
RAYBESTOS 980109 Fits Vehicles
- Kia Spectra (2000)
- Kia Sephia (1994-2000)
