(888) 312-8812 Login SignupRAYBESTOS 980479 Raybestos Specialty - Street Performance Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980479 Part Description
Manufacturer
Product Description

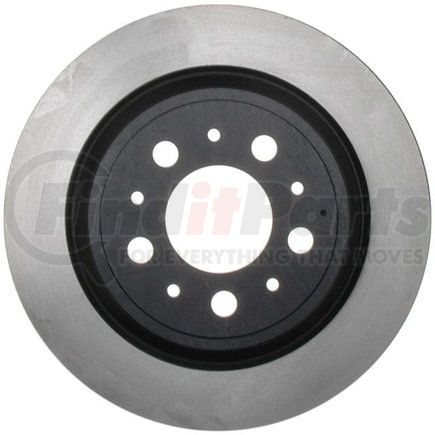

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2000-1999 Volvo S70 Rear, 2000-1999 Volvo V70 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980479 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.394 IN |
| Discard Thickness | 10 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.625 IN |
| Mounting Bolt Hole Diameter | 15.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 11.339 IN |
| Outside Diameter | 288 MM |
| Overall Height | 2.437 IN |
| Overall Height | 61.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352541227 |
RAYBESTOS 980479 Cross References
| Brand | Part Number |
|---|---|
| 829352541227, 120.39030 | |
| ADVANCE AUTO PARTS | 200888, 832814, YH145148, YH200888 |
| ATE BRAKE PRODUCTS | 412165 |
| BOSCH | 52011356 |
| BRAKEBEST | 52011356, 980479, 980479RGS |
| BREMBO | 08.A600.10, 08.B273.10 |
| CENTRIC | 120.39030, 121.39030, 125.39030, 126.39030CSL, 126.39030CSR, 126.39030SL, 126.39030SR, 127.39030CL, 127.39030CR, 127.39030L, 127.39030R |
| Centric Parts | 121.39030, 125.39030, 126.39030CSL, 126.39030CSR, 126.39030SL, 126.39030SR, 127.39030CL, 127.39030CR, 127.39030L, 127.39030R, 120.39030 |
| DURA CORP | BR34309 |
| DuraGo | BR34309 |
| NEWTEK AUTOMOTIVE | 34309 |
| Newtek Automotive USA | 34309 |
| PROMAX | 14-34309 |
| PRONTO | BR901218 |
| Qualis | 45417 |
| TRW | 6048 |
| UAP | 34309 |
| VAICO | V9540010 |
| VOLVO | 272429, 2724292, 31262097 |
| WAGNER | BD125743 |
| WAGNER BRAKE | BD125743 |
| WINHERE | 441555 |
RAYBESTOS 980479 Fits Vehicles
- Volvo V70 (1999-2000)
- Volvo S70 (1999-2000)
