DELPHI TC8457 Part Description
Manufacturer
Product Description

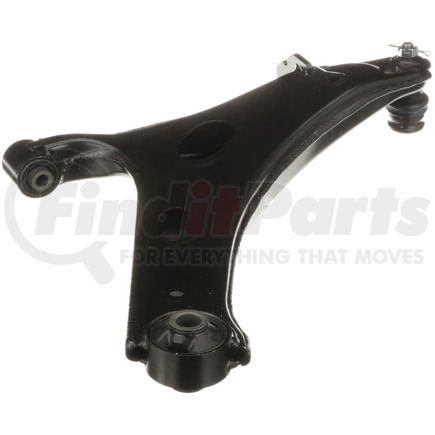

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
tc8457
DELPHI TC8457 Specifications
Product Attributes
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 114.80 MM |
| Control Arm Maximum Width | 4.520 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 10.70 MM |
| Ball Joint Stud Length | 16.40 MM |
| Ball Joint Stud Length | 0.646 IN |
| Control Arm Maximum Length | 444.70 MM |
| Control Arm Maximum Length | 17.508 IN |
| Mounting Hole Diameter | 19.20 MM |
| Mounting Hole Diameter | 0.756 IN |
| Distance Between Bushings | 333.15 MM |
| Distance Between Bushings | 13.116 IN |
| Bushing Inside Diameter | 19.20 MM |
| Bushing Length | 57.00 MM |
| Bushing Length | 2.244 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.421 IN |
| Bushing Inside Diameter | 0.756 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604389393 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC8457 Cross References
DELPHI TC8457 Fits Vehicles
- Subaru Forester (2014-2018)
DELPHI TC8457 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC8457 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
