(888) 312-8812 Login SignupRAYBESTOS 980101R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980101R Part Description
Manufacturer
Product Description

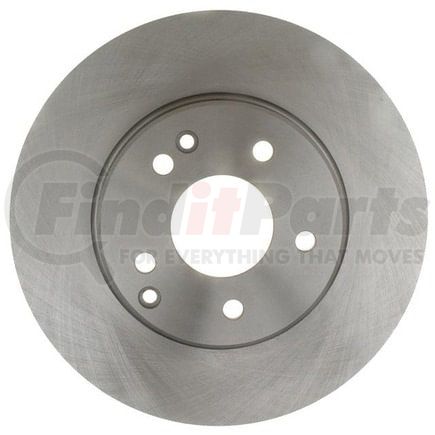

Raybestos R-Line Brake Rotor
Application Summary
2007-2002 Mercedes-Benz C230 Front, 2005-2001 Mercedes-Benz C240 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980101R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 11.338 IN |
| Outside Diameter | 288 MM |
| Overall Height | 1.831 IN |
| Overall Height | 46.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352467442 |
RAYBESTOS 980101R Cross References
RAYBESTOS 980101R Fits Vehicles
- Mercedes-Benz SLK230 (1998-2004)
- Mercedes-Benz E300 (1996-1997)
- Mercedes-Benz C280 (1996-2000)
- Mercedes-Benz C240 (2001-2005)
- Mercedes-Benz C230 (1999-2000, 2002-2007)
