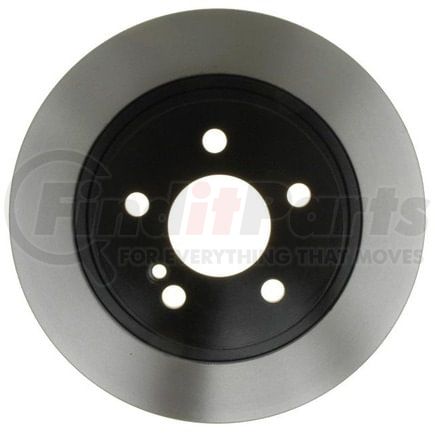

(888) 312-8812 Login SignupRAYBESTOS 980729 Raybestos Specialty - Street Performance Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980729 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2012-2008 Mercedes-Benz C300 Rear, 2015-2010 Mercedes-Benz C250 Rear, 2009-2008 Mercedes-Benz C230 Rear, 2012 Mercedes-Benz C180 Rear, 2012 Mercedes-Benz C200 Rear, 2009-2008 Mercedes-Benz C280 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980729 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.327 IN |
| Discard Thickness | 8.3 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.122 IN |
| Inside Diameter | 206.3 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.598 IN |
| Mounting Bolt Hole Diameter | 15.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.396 IN |
| Nominal Thickness | 10.05 MM |
| Outside Diameter | 11.814 IN |
| Outside Diameter | 300.1 MM |
| Overall Height | 2.266 IN |
| Overall Height | 57.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352744185 |
RAYBESTOS 980729 Cross References
RAYBESTOS 980729 Fits Vehicles
- Mercedes-Benz C200 (2012)
- Mercedes-Benz C180 (2012)
- Mercedes-Benz C250 (2010-2016)
- Mercedes-Benz C280 (2008-2009)
- Mercedes-Benz C230 (2008-2009)
- Mercedes-Benz C300 (2008-2012)
