(888) 312-8812 Login SignupRAYBESTOS 96788R Raybestos R-Line Brake Rotor
$9049
Limited availability at this price!
In Stock
Get it by Monday, Mar 23
RAYBESTOS 96788R Part Description
Manufacturer
Product Description

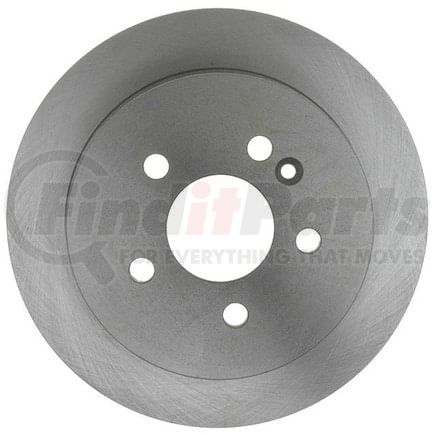

Raybestos R-Line Brake Rotor
Application Summary
2003-1998 Mercedes-Benz ML320 Rear, 2005-2003 Mercedes-Benz ML350 Rear, 1999 Mercedes-Benz ML430 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96788R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.512 IN |
| Discard Thickness | 13 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.587 IN |
| Nominal Thickness | 14.9 MM |
| Outside Diameter | 11.22 IN |
| Outside Diameter | 285 MM |
| Overall Height | 2.189 IN |
| Overall Height | 55.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352466704 |
RAYBESTOS 96788R Cross References
RAYBESTOS 96788R Fits Vehicles
- Mercedes-Benz ML430 (1998-1999)
- Mercedes-Benz ML350 (2003-2005)
- Mercedes-Benz ML320 (1998-2003)
