(888) 312-8812 Login SignupRAYBESTOS 96343R Raybestos R-Line Brake Rotor
$4199
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 18
RAYBESTOS 96343R Part Description
Manufacturer
Product Description

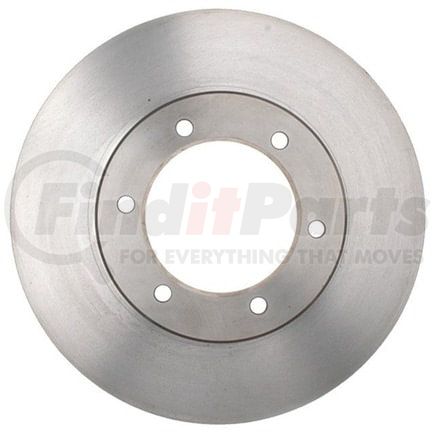

Raybestos R-Line Brake Rotor
Application Summary
1998-1993 Toyota T100 Front, 1995-1991 Toyota 4Runner Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96343R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.94 IN |
| Center Hole Diameter | 100.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.905 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.408 IN |
| Mounting Bolt Hole Diameter | 10.35 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.985 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 11.45 IN |
| Outside Diameter | 290.85 MM |
| Overall Height | 2.59 IN |
| Overall Height | 65.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352370926 |
RAYBESTOS 96343R Cross References
RAYBESTOS 96343R Fits Vehicles
- Toyota T100 (1993-1998)
- Toyota 4Runner (1991-1996)
