(888) 312-8812 Login SignupRAYBESTOS 96714R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96714R Part Description
Manufacturer
Product Description

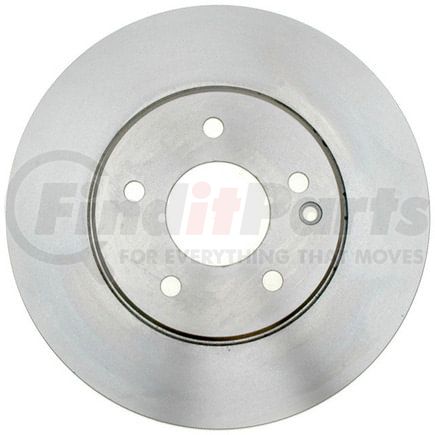

Raybestos R-Line Brake Rotor
Application Summary
1998-1997 Mercedes-Benz C230 Front, 1996-1994 Mercedes-Benz C220 Front, 1995-1994 Mercedes-Benz C280 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96714R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.764 IN |
| Discard Thickness | 19.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.86 IN |
| Nominal Thickness | 21.85 MM |
| Outside Diameter | 11.18 IN |
| Outside Diameter | 283.95 MM |
| Overall Height | 1.71 IN |
| Overall Height | 43.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352372098 |
RAYBESTOS 96714R Cross References
| Brand | Part Number |
|---|---|
| 90052480, 829352372098 | |
| ADVANCE AUTO PARTS | 145119, YH145119, YH145119C |
| ALTROM IMPORTS | 2024210912 |
| AUTOPART INTERNATIONAL | 78105 |
| AUTOSPECIALTY | EBR452, EBR452E |
| AUTOXTRA | AX34091 |
| AUTOZONE | 34091, 34091DG |
| BECK/ARNLEY | 083-2627 |
| BENDIX | 145119 |
| BRAKE HEADQUARTERS | BR07271 |
| BRAKEBEST | 36010935, 96714, 96714R, 96714RGS, BD125443 |
| BREMBO | 09.4869.40, 25251 |
| CALIFORNIA DRUM & ROTOR | 125443 |
| CENTRIC | 120.33043, 121.33043, 125.33043, 126.33043CSL, 126.33043CSR, 126.33043SL, 126.33043SR, 127.33043L, 127.33043R, 128.33043L, 128.33043R |
| CONTINENTAL-CONTITECH | CW12128, CW22132 |
| Casting Numbers | 210997-C, 325887 |
| Centric Parts | 120.33043, 121.33043, 125.33043, 126.33043CSL, 126.33043CSR, 126.33043SL, 126.33043SR, 127.33043L, 127.33043R, 128.33043L, 128.33043R |
| DELPHI | RB336 |
| DURA CORP | BR34091 |
| DuraGo | BR34091 |
| EUROROTOR | ME178 |
| GREN | 432002 |
| MERCEDES-BENZ | 2024210912 |
| MIDAS | BR2088 |
| MIGHTY DISTRIBUTING SYSTEM | 34091 |
| MONROE BRAKES | BD125443 |
| NEWTEK AUTOMOTIVE | 34091 |
| Newtek Automotive USA | 34091 |
| PILENGA | V195 |
| PROMAX | 14-34091 |
| QUALIS | 34091 |
| QUALITEE INTERNATIONAL | 64-13-310 |
| QUALITY BRAND | 34091, Q165 |
| QUINTON HAZELL | BDC3839 |
| STANDARD ROTORS AND DRUMS | 34091 |
| THE UNIVERSAL GROUP | 110090 |
| TRUSTAR | 413310, R13310 |
| TRW | 2656, DF2656S |
| UAP | 34091 |
| Universal | 110090 |
| VAICO | V3080020 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51039 |
| WAGNER | BD125443 |
| WAGNER BRAKE | BD125443 |
| WINHERE | 442010, YH2010 |
RAYBESTOS 96714R Fits Vehicles
- Mercedes-Benz C280 (1994-1995)
- Mercedes-Benz C230 (1997-1998)
- Mercedes-Benz C220 (1994-1996)
