RAYBESTOS 980634R Part Description
Manufacturer
Product Description

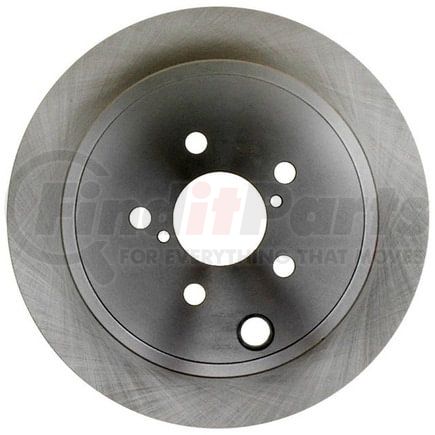

Raybestos R-Line Brake Rotor
Application Summary
2014-2010 Subaru Outback Rear, 2014-2008 Subaru Impreza Rear, 2013-2009 Subaru Forester Rear, 2014-2010 Subaru Legacy Rear, 2015-2013 Subaru BRZ Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980634R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.28 IN |
| Center Hole Diameter | 57.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.33 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.319 IN |
| Inside Diameter | 211.3 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.94 IN |
| Mounting Bolt Hole Circle Diameter | 100.1 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.39 IN |
| Nominal Thickness | 9.9 MM |
| Outside Diameter | 11.26 IN |
| Outside Diameter | 286 MM |
| Overall Height | 2.5 IN |
| Overall Height | 63.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352728253 |
RAYBESTOS 980634R Cross References
RAYBESTOS 980634R Fits Vehicles
- Scion FR-S (2013-2016)
- Subaru WRX (2012-2014)
- Subaru BRZ (2013-2016)
- Subaru Outback (2010-2014)
- Subaru Legacy (2010-2014)
- Subaru Forester (2009-2013)
- Subaru Impreza (2008-2014)
