(888) 312-8812 Login SignupRAYBESTOS 96620R Raybestos R-Line Brake Rotor
MSRP: $57.78
$4349
Save $14.29
Limited availability at this price!
In Stock
Get it by Wednesday, Mar 11
RAYBESTOS 96620R Part Description
Manufacturer
Product Description

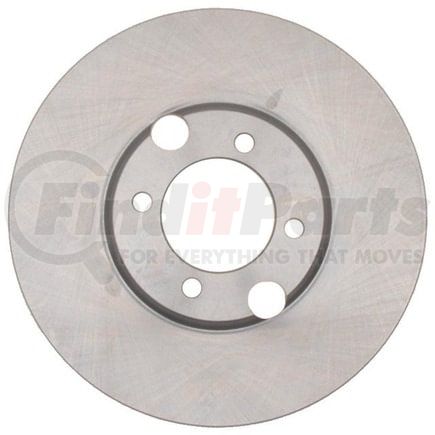

Raybestos R-Line Brake Rotor
Application Summary
1991-1986 Jaguar XJS Rear, 1987-1985 Jaguar XJ6 Rear, 1987-1985 Jaguar Vanden Plas Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96620R Specifications
Product Attributes
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.45 IN |
| Discard Thickness | 11.45 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.75 IN |
| Mounting Bolt Hole Circle Diameter | 95.25 MM |
| Mounting Bolt Hole Diameter | 3.75 IN |
| Mounting Bolt Hole Diameter | 95.25 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.51 IN |
| Nominal Thickness | 12.95 MM |
| Outside Diameter | 10.38 IN |
| Outside Diameter | 263.65 MM |
| Overall Height | 1.01 IN |
| Overall Height | 25.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352466445 |
RAYBESTOS 96620R Cross References
RAYBESTOS 96620R Fits Vehicles
- Jaguar XJRS (1993)
- Jaguar XJS (1983-1993)
- Jaguar XJ6 (1985-1987)
- Jaguar Vanden Plas (1983-1987)
