RAYBESTOS 76923R Part Description
Manufacturer
Product Description

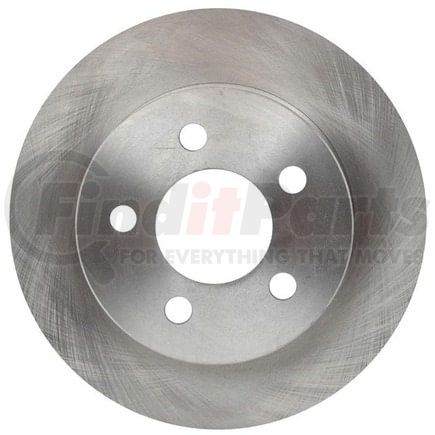

Raybestos R-Line Brake Rotor
Application Summary
2006-1999 Jeep Wrangler Front, 2001-1999 Jeep Cherokee Front, 2006-1999 Jeep TJ Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 76923R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.894 IN |
| Discard Thickness | 22.7 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.955 IN |
| Nominal Thickness | 24.25 MM |
| Outside Diameter | 11.03 IN |
| Outside Diameter | 280.15 MM |
| Overall Height | 3.06 IN |
| Overall Height | 77.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367155 |
RAYBESTOS 76923R Cross References
RAYBESTOS 76923R Fits Vehicles
- Jeep TJ (1999-2006)
- Jeep Wrangler (1999-2006)
- Jeep Cherokee (1999-2001)
