(888) 312-8812 Login SignupRAYBESTOS 96780R Raybestos R-Line Brake Rotor
MSRP: $70.94
$5799
Save $12.95
Limited availability at this price!
In Stock
Get it by Monday, Mar 16
RAYBESTOS 96780R Part Description
Manufacturer
Product Description

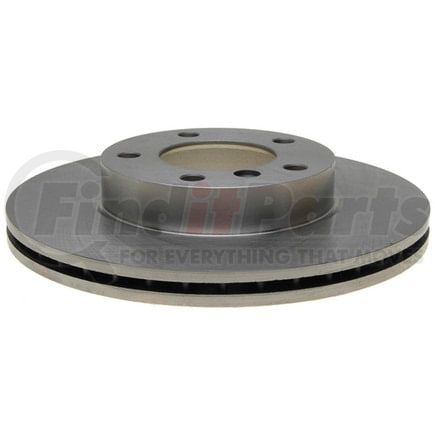

Raybestos R-Line Brake Rotor
Application Summary
2002-1997 BMW Z3 Front, 2005-2003 BMW Z4 Front, 2000-1998 BMW 323i Front, 1998-1996 BMW 328i Front, 1995-1992 BMW 325i Front, 1998-1992 BMW 318i Front, 2000 BMW 323Ci Front, 1995-1992 BMW 325is Front, 1999-1996 BMW 328is Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96780R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.12 IN |
| Center Hole Diameter | 79.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.86 IN |
| Nominal Thickness | 21.85 MM |
| Outside Diameter | 11.25 IN |
| Outside Diameter | 285.75 MM |
| Overall Height | 2.03 IN |
| Overall Height | 51.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352372296 |
RAYBESTOS 96780R Cross References
RAYBESTOS 96780R Fits Vehicles
- BMW 318ti (1998-1999)
- BMW 320i (1993-1995, 2001-2005)
- BMW Z4 (2003-2006)
- BMW Z3 (1997-2002)
- BMW 328is (1996-1999)
- BMW 328i (1996-1999)
- BMW 325is (1992-1995)
- BMW 325i (1992-1995)
- BMW 323is (1998-1999)
- BMW 323Ci (2000)
- BMW 323i (1998-2000)
- BMW 318is (1992-1999)
- BMW 318i (1992-1999)
