CENTRIC 131.42502 Part Description
Manufacturer
Product Description

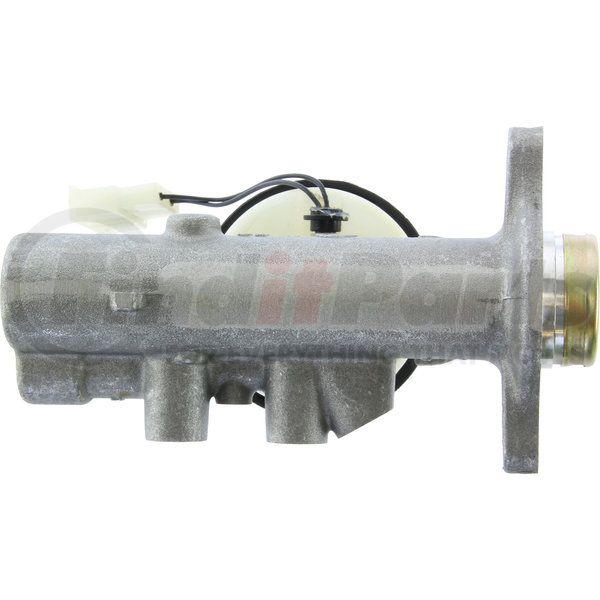

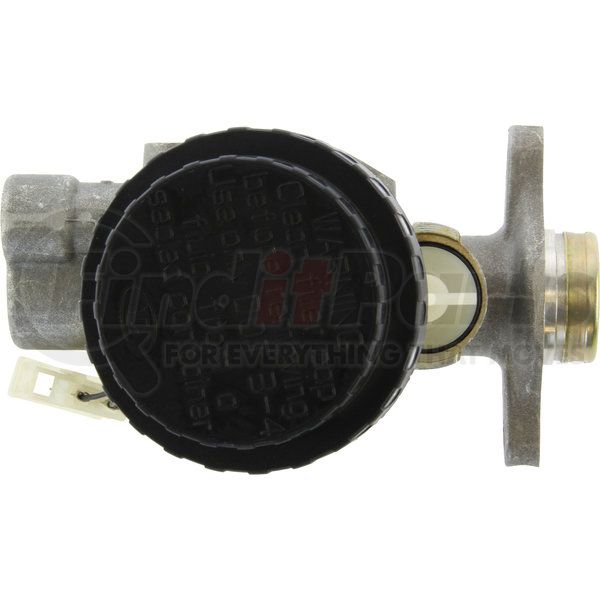

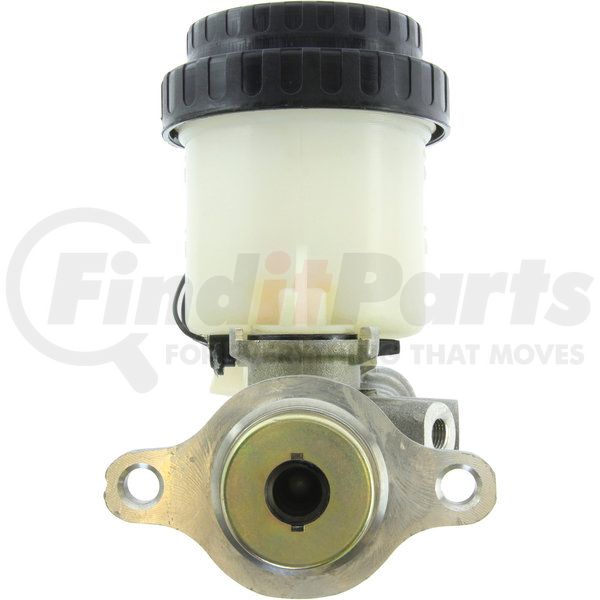

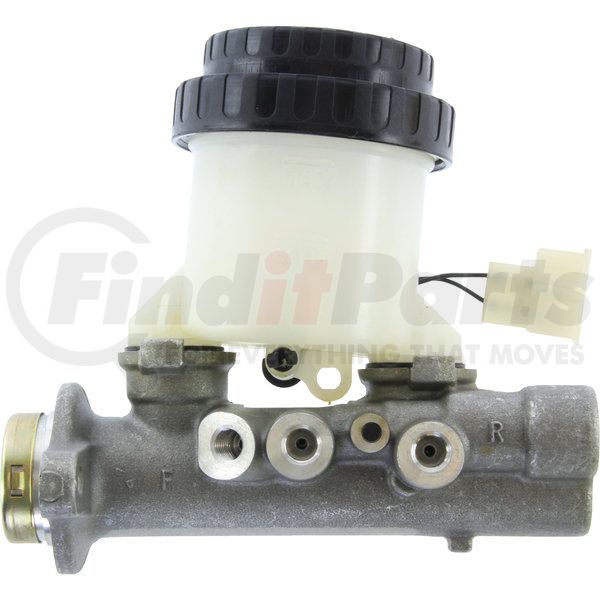

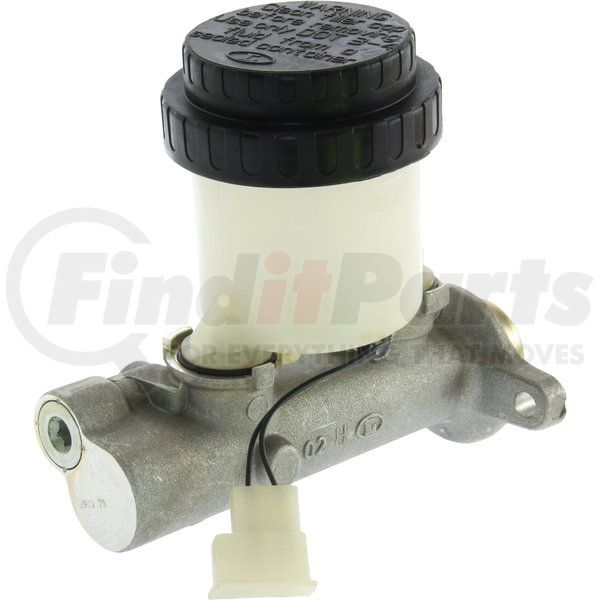

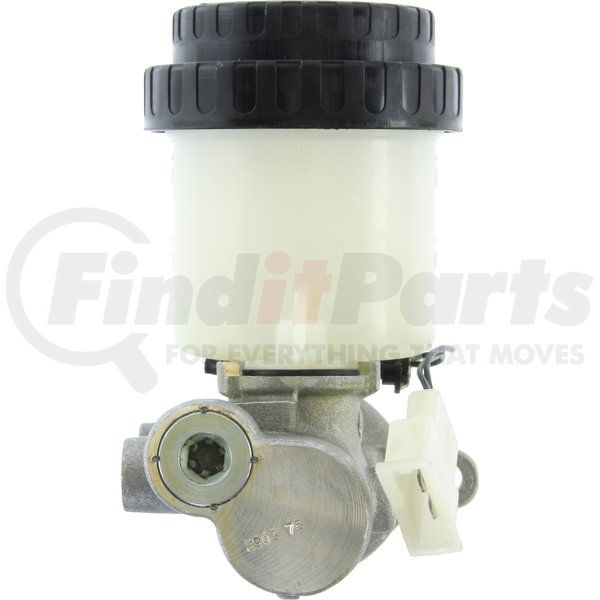

C-Tek Standard Brake Master Cylinder
Application Summary
1984 - 1988 Nissan 200SX, 1984 - 1989 Nissan 300ZX
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
C-Tek Master Cylinder, Centric Parts Master Cylinder, Centric, Centricparts master Cylinder
CENTRIC 131.42502 Specifications
Product Attributes
| Push Rod: Length / Depth [cntrc] In | 1.03 |
| Boss, Nipple Or Port: Front, Right: #a [cntrc] | M10-1.00 inv |
| Boss, Nipple Or Port: Rear, Right: #a [cntrc] | M10-1.00 inv |
| Weight [cntrc] Kgs | 0.97 |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Publication Bore [cntrc] | 15/16" |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | nipple |
| Boss, Nipple Or Port: Center, Right: [cntrc] | M10-1.00 inv |
| Weight [cntrc] Lbs | 2.14 |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Product Grade [cntrc] | Standard |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 23.813 MM |
| Master Cylinder Bore Diameter | 0.938 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 10.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 23.813 MM |
| Bore Size | 0.938 IN |
| Secondary Outlet Thread Size | M10-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Inverted |
| Primary Bore Diameter | 23.813 MM |
| Primary Bore Diameter | 0.938 IN |
| Reservoir Style | Removable |
CENTRIC 131.42502 Cross References
CENTRIC 131.42502 Fits Vehicles
- Nissan 300ZX (1984-1989)
- Nissan 200SX (1984-1988)
