(888) 312-8812 Login SignupRAYBESTOS 96598R Raybestos R-Line Brake Rotor
$3049
Limited availability at this price!
In Stock
Get it by Thursday, Mar 5
RAYBESTOS 96598R Part Description
Manufacturer
Product Description

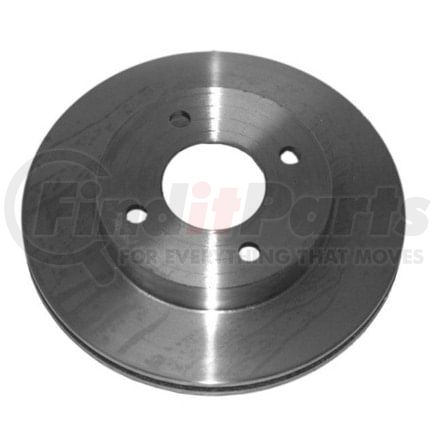

Raybestos R-Line Brake Rotor
Application Summary
1999-1995 Nissan Sentra Front, 1997-1995 Nissan 200SX Front, 2000-1996 Nissan Lucino Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96598R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.4 IN |
| Center Hole Diameter | 60.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.63 IN |
| Discard Thickness | 16 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 9.13 IN |
| Outside Diameter | 231.9 MM |
| Overall Height | 1.78 IN |
| Overall Height | 45.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352371794 |
RAYBESTOS 96598R Cross References
RAYBESTOS 96598R Fits Vehicles
- Nissan Lucino (1996-2000)
- Nissan Sentra (1995-1999)
- Nissan 200SX (1995-1998)
