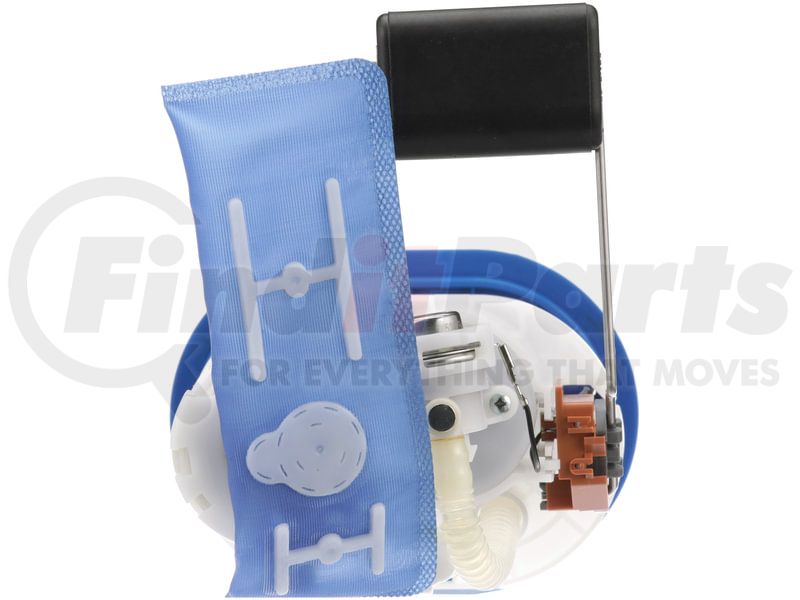

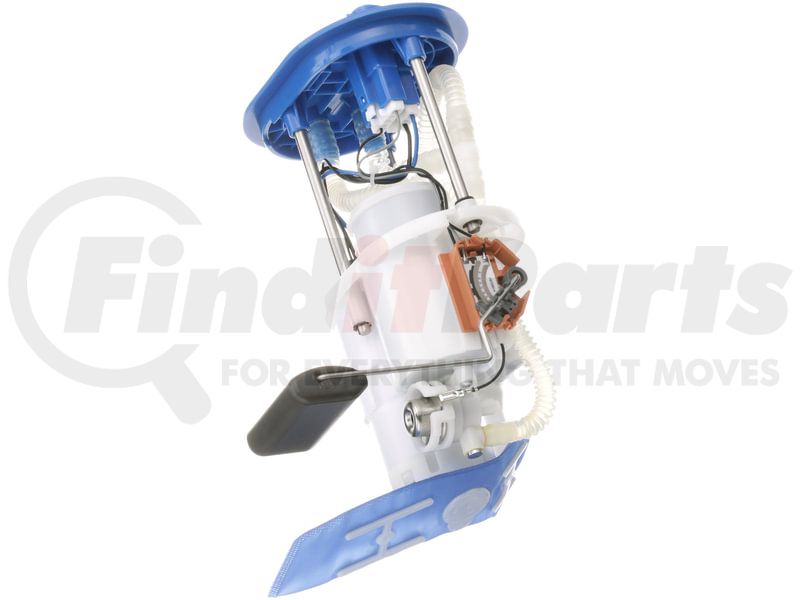

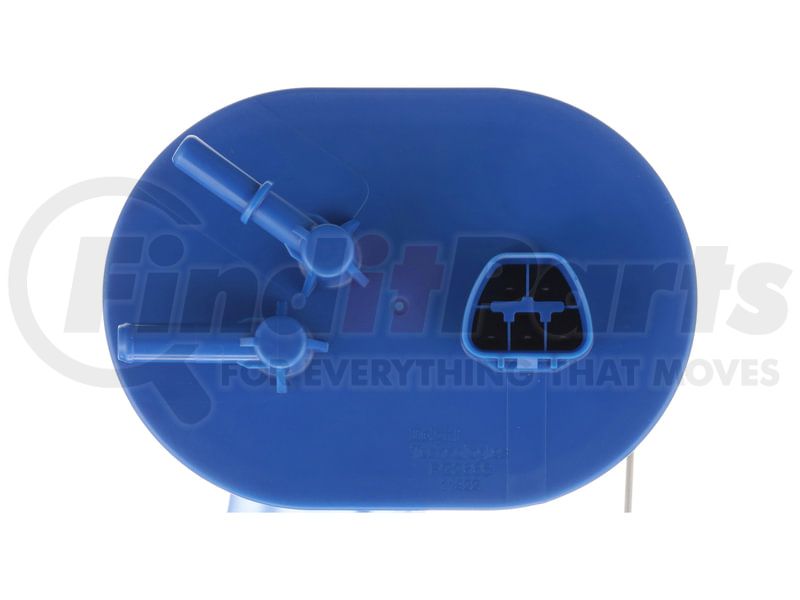

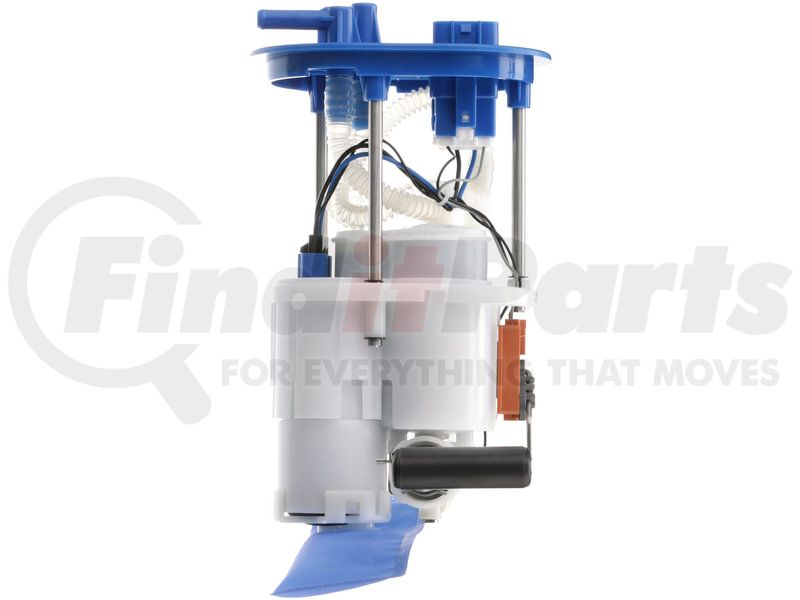

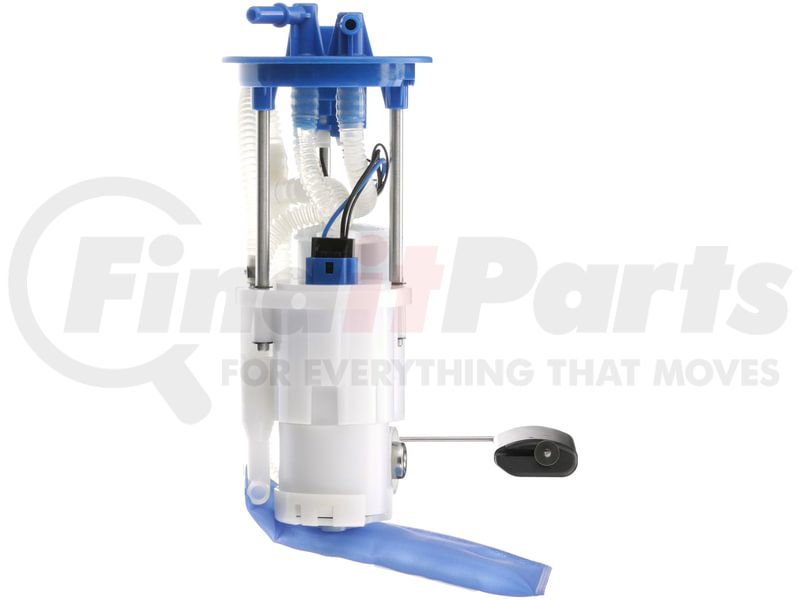

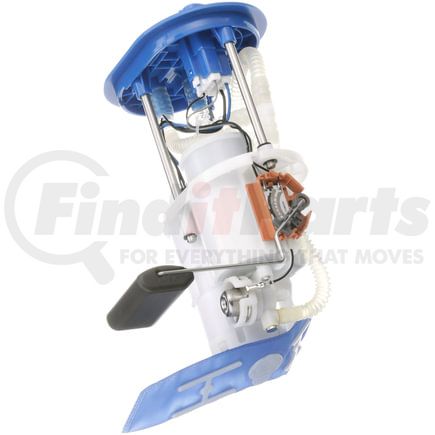

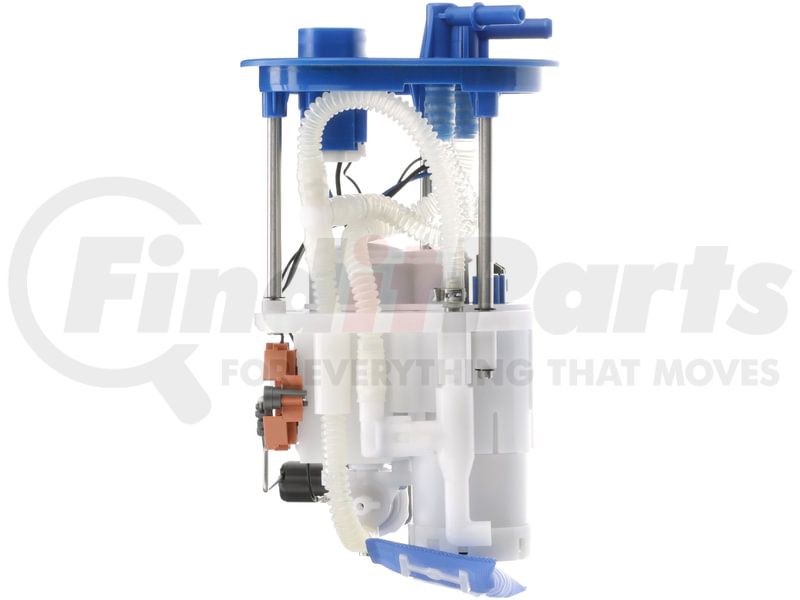

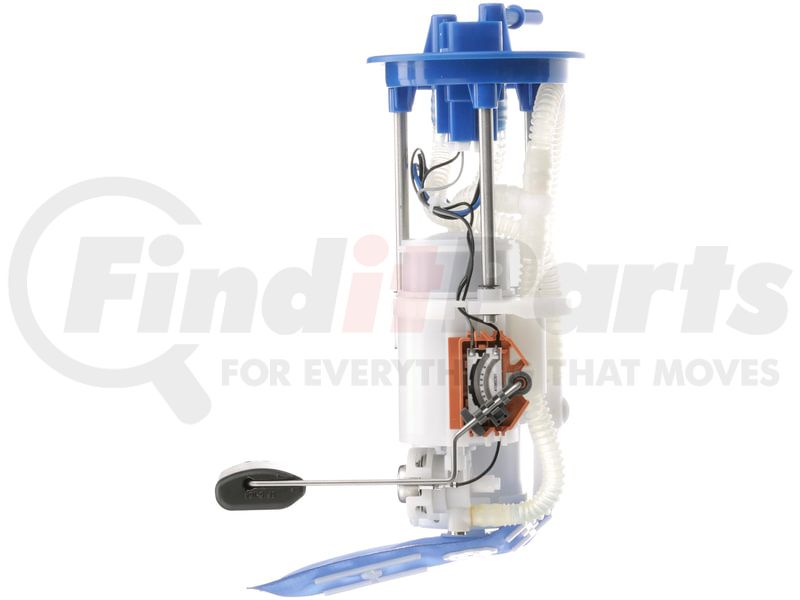

(888) 312-8812 Login SignupDELPHI FG2666 Fuel Pump Module Assembly
Tap to view 8 more
$42049
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Mar 23
DELPHI FG2666 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
Fuel Pump Module Assembly
DELPHI FG2666 Specifications
Product Attributes
| Item Grade | Standard Replacement |

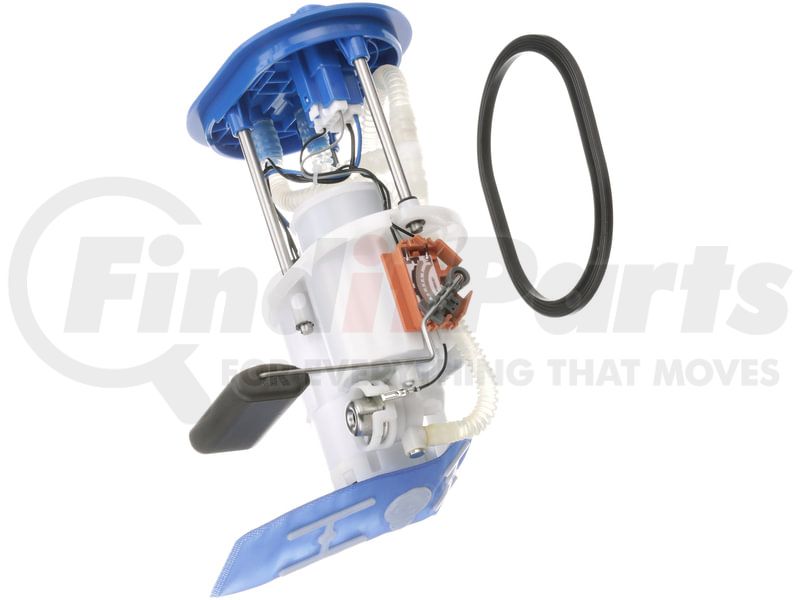

| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| Outlet Outside Diameter | 0.3125 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 5 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 175 82 |
| Resistance Ohms Full | 85 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 9 68 |
| Average Flow Rating | 46 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |

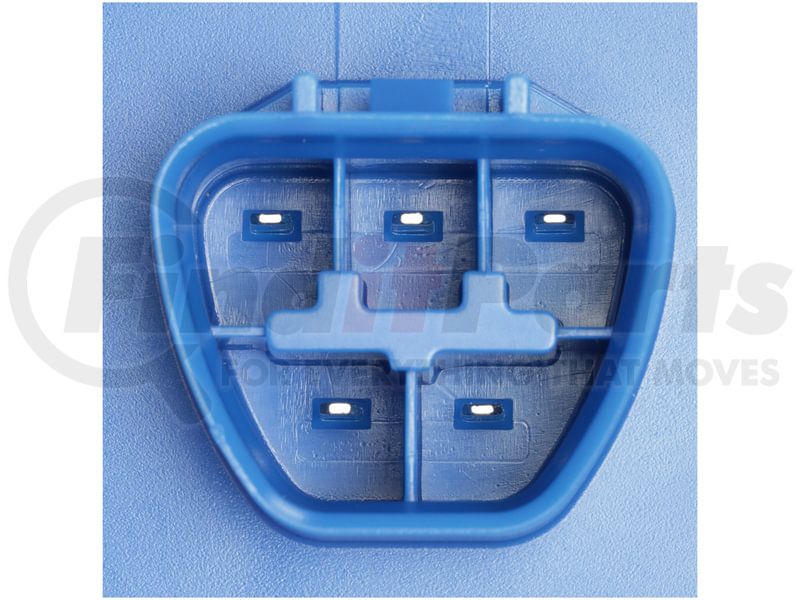

| Connector Shape | Trapezoid |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 69 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604386620 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG2666 Cross References
| Brand | Part Number |
|---|---|
| Airtex | E94124M |
| AutoZone | CFG2666 |
| Hyundai | 31110-3M950 |
| Spectra Premium | SP3078M |
DELPHI FG2666 Fits Vehicles
- Hyundai Equus (2012-2014)
- Hyundai Genesis (2012-2014)
DELPHI FG2666 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI FG2666 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
