CENTRIC 130.45209 Part Description
Manufacturer
Product Description

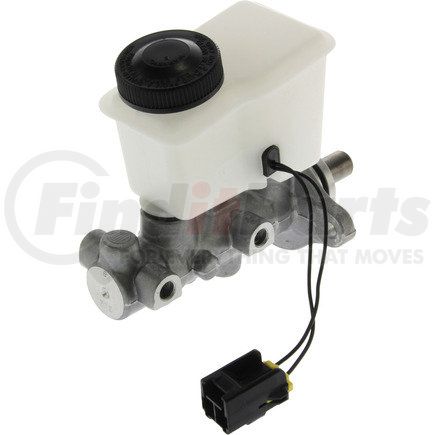

Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
CENTRIC 130.45209 Specifications
Product Attributes
| Push Rod: Length / Depth [cntrc] In | 1.49 |
| Boss, Nipple Or Port: Rear: #a [cntrc] | M10-1.00 inv |
| Weight [cntrc] Lbs | 1.5 |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Product Grade [cntrc] | Premium |
| Publication Bore [cntrc] | 15/16" |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | M10-1.00 inv |
| Boss, Nipple Or Port: Center, Bottom [cntrc] | screw |
| Weight [cntrc] Kgs | 0.68 |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 23.813 MM |
| Master Cylinder Bore Diameter | 0.938 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 10.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 23.813 MM |
| Bore Size | 0.938 IN |
| Secondary Outlet Thread Size | M10-1.00 |
| Reservoir Style | Removable |
| Primary Bore Diameter | 0.938 IN |
| Primary Bore Diameter | 23.813 MM |
| Secondary Outlet Flare Type | Inverted |
| Primary Outlet Flare Type | Inverted |
| Primary Outlet Thread Size | M10-1.00 |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890004745 |
CENTRIC 130.45209 Cross References
| Brand | Part Number |
|---|---|
| MC390108, F128280, F134473, MC128280, MC134473 | |
| DORMAN | M390108 |
| N/A | F128280, F134473, MC128280, MC134473, 0729145, 0729335, ZY12606, 6674620, NM55007, M900832, GA2D43400D, GA2D4340Z, GAYD4340ZC, GAYD4340ZD, F32Z2140A, GD7C43400, 65-M390108, CM2059, MC390108, 12606, 390108, 230245209, 2302-45209, MC250880, 112671, M53209, E150561, 35580037, 18M622, 18030864, M390108 |
| RAYBESTOS | MC390108 |
| WAGNER | MC128280, MC134473 |
CENTRIC 130.45209 Fits Vehicles
- Mazda 626 (1993-1999)
- Mazda MX-6 (1993-1997)
- Ford Probe (1993-1997)
