DORMAN TI120000PR Part Description
Manufacturer
Product Description

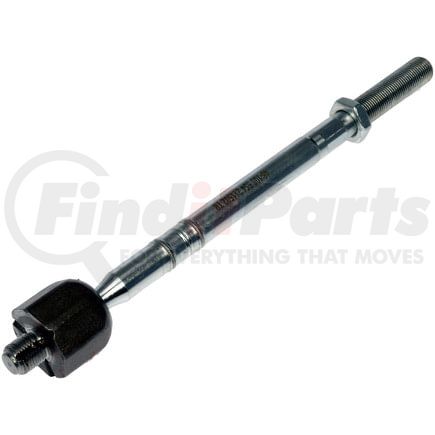

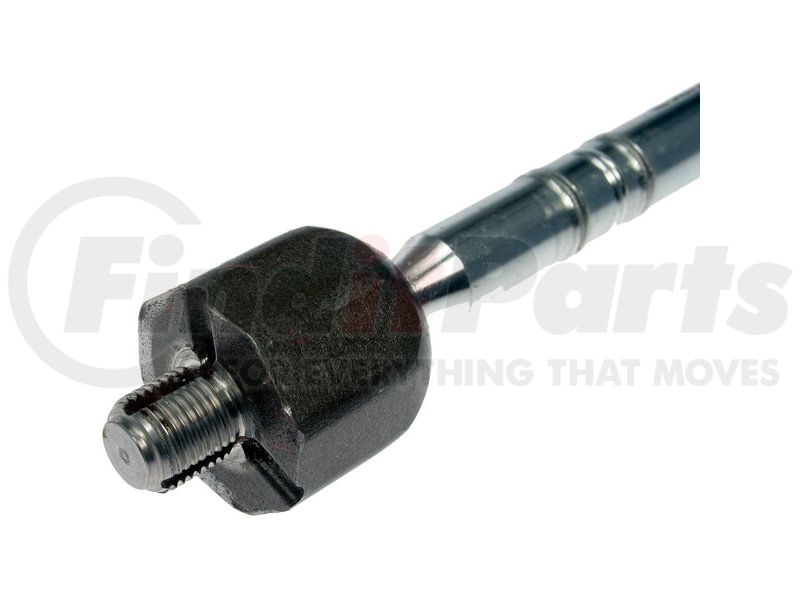

Steering Tie Rod End
Application Summary
Audi 2015-07, Porsche 2018-08, Porsche 2006-03, Volkswagen 2022-04
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
Steering Tie Rod End
DORMAN TI120000PR Specifications
Product Attributes
| Center Mount Hole Quantity | 0 |
| Package Contents | 1 Nut |
| Center Mount Stud Quantity | 1 |
| Thread Pitch | 1.5 mm |
| End 1 Attachment Type | Roscado |
| Tie Rod End Thread Diameter | 16 mm |
| End 2 Attachment Type | Roscado |
| Weight | 1.49 lb |
| End 2 Type | Roscado |
| Head Drive Type | Slotted |
| Material | Acero |
| Outside Diameter | 17.20 mm |
| Length | 304 MM |
| Color | Noir |
| End 1 Gender | Macho |
| End 2 Gender | Macho |
| Finish | Revestimiento en polvo |
| Pre-Greased | Oui |
| Grease Fitting Included | Non |
| Dust Boot Included | Non |
| Width | 40 MM |
| Type | Recto |
| Mounting Hardware Included | Oui |
| End 2 Thread Diameter | 16 MM |
| Height | 40 MM |
| Grade Type | Reemplazo estándar |
| Housing Material | Acero |
| Tube Diameter | 17.20 MM |
| Adjustable | Oui |
| Cone Outside Diameter | 11.57 MM |
| Bearing Material | Polímero |
| End 1 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| End 2 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Grade | Reemplazo estándar |
| Stud Type | Roscado |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Tie Rod Material | Acero |
| End 1 Thread Diameter | 16 MM |
| Ball Joint Included | Oui |
| Bolts Included | Non |
| Head Drive Type | Ranurado |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador |
| Contenidos del paquete | 1 extremo del terminal de la dirección, 1 rótula (ball joint), 1 tuerca |
| Outside Diameter | 17.20 mm MM |
| Thread Pitch | 1.5 mm mm |
| Tie Rod End Thread Diameter | 16 mm mm |
| Weight | 1.49 Lbs LB |
| End 1 Thread Diameter | 16 mm MM |
| Diámetro la rosca de extremo 2 | 16mm MM |
| Diámetro la rosca de extremo 1 | 16mm MM |
| Diámetro de la rosca de la terminal de la dirección | 16mm MM |
| Center Mount Stud Quantity | 1 IN |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador IN |
| Paso de rosca | 1,5mm MM |
| End 1 Thread Pitch | 1.5 mm mm |
| Espacio de la rosca del extremo 2 | 1,5mm MM |
| Espacio de la rosca del extremo 1 | 1,5mm MM |
| End 2 Thread Pitch | 1.5 mm MM |
| End 2 Thread Diameter | 16 mm MM |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00194883376335 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TI120000PR Cross References
| Brand | Part Number |
|---|---|
| Delphi | TL2027 |
| MOOG Chassis Products | EV801090 |
| Mevotech Supreme | MS70600 |
| Volkswagen | 2H0419803, 2H0419804, 7L0422803B, 7L0422803D, 7L0422804B, 7L0422804D, 95534703122, 95534703220, 95534703221, 95534703222 |
DORMAN TI120000PR Fits Vehicles
- Volkswagen Amarok (2011-2024)
- Audi Q7 (2007-2015)
- Volkswagen Touareg (2004-2018)
- Porsche Cayenne (2003-2006, 2008-2018)
