CENTRIC 402.62019 Part Description
Manufacturer
Product Description

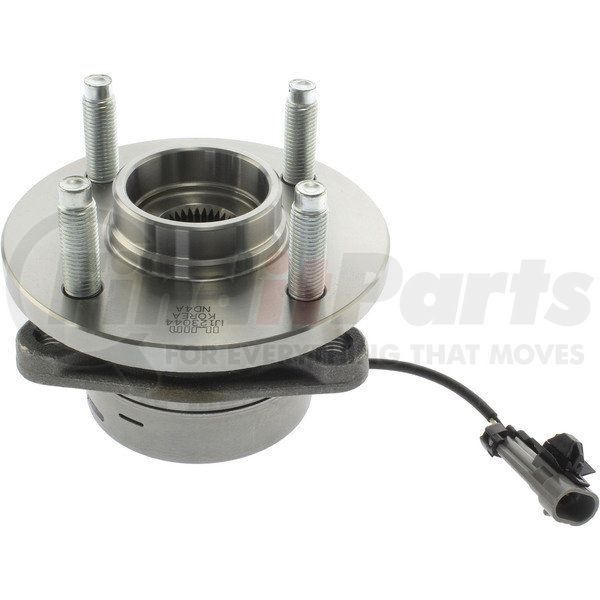

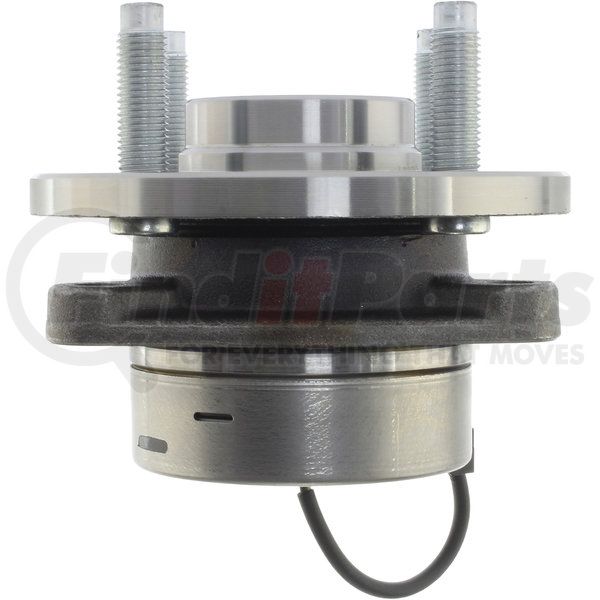

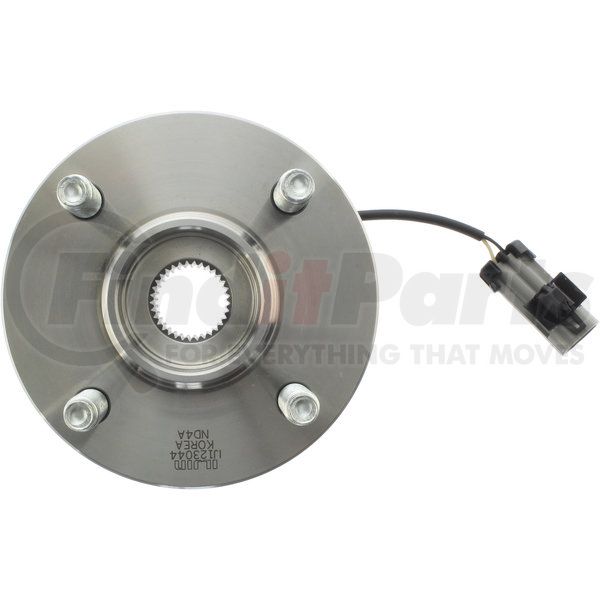

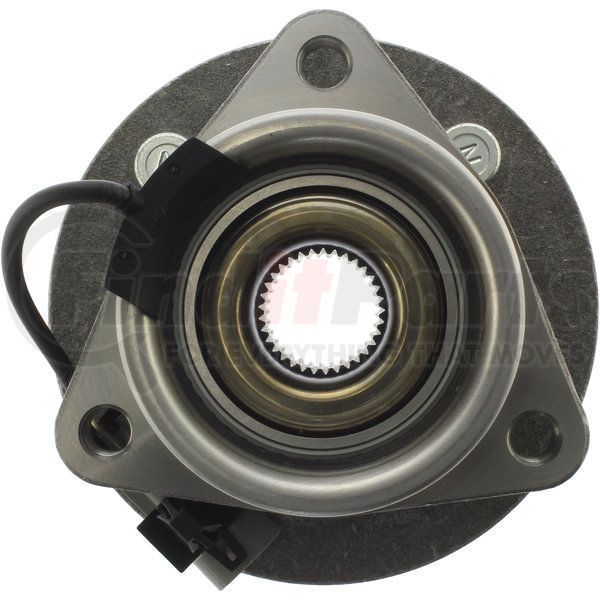

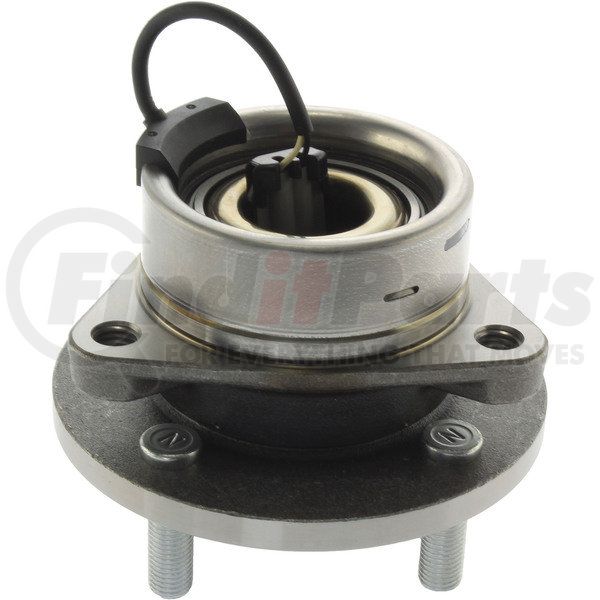

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 402.62019 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Off-set [cntrc] Mm | 1.536 |
| Mounting Hole Qty [cntrc] | 3 |
| Off-set [cntrc] In | 39.010 |
| Inner Mount Pilot [cntrc] Mm | 84.990 |
| Inner Mount Pilot [cntrc] In | 3.346 |
| Spline Quantity | 33 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 56.490 MM |
| Wheel Pilot Diameter | 2.224 IN |
| Brake Pilot Diameter | 59.890 MM |
| Brake Pilot Diameter | 2.358 IN |
| Wheel Stud Quantity | 8 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.191 IN |
| Flange Diameter | 131.850 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 00805890564232 |
CENTRIC 402.62019 Cross References
CENTRIC 402.62019 Fits Vehicles
- Pontiac G4 (2006)
- Pontiac G5 (2007-2010)
- Pontiac Pursuit (2005-2006)
- Chevrolet Cobalt (2005-2010)
- Saturn Ion (2003-2007)
