CENTRIC 400.33001 Part Description
Manufacturer
Product Description
Centric Premium Hub and Bearing Assembly; With ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable

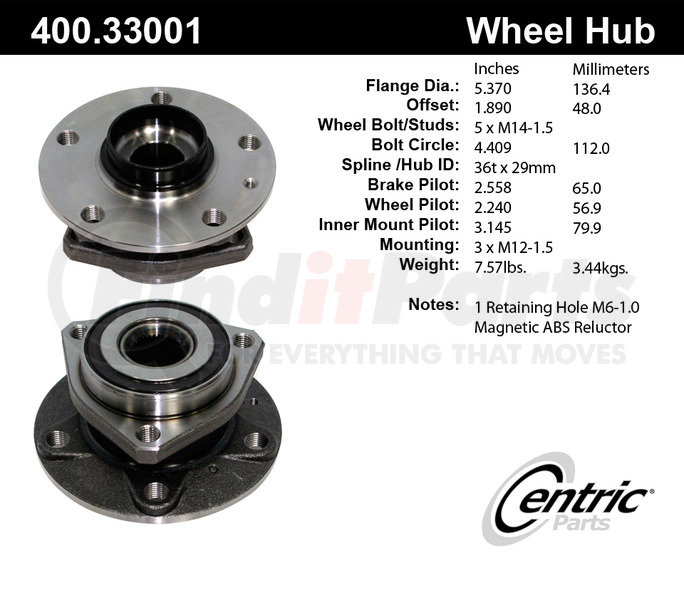

CENTRIC 400.33001 Specifications
Product Attributes
| Notes [cntrc] | Magnetic ABS Encoder; 1 Rotor Retaining Hole M6-1.0 |
| Off-set [cntrc] In | 48.010 |
| Spline Bore Dia [cntrc] Mm | 29.000 |
| Inner Mount Pilot [cntrc] In | 3.145 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Product Grade [cntrc] | Premium |
| Bolt Circle Diameter [cntrc] Mm | 111.990 |
| Bolt Circle Diameter [cntrc] In | 4.409 |
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Off-set [cntrc] Mm | 1.890 |
| Inner Mount Pilot [cntrc] Mm | 79.880 |
| Mounting Hole Qty [cntrc] | 3 |
| Spline Quantity | 36 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 63.370 MM |
| Wheel Pilot Diameter | 2.495 IN |
| Brake Pilot Diameter | 64.950 MM |
| Brake Pilot Diameter | 2.557 IN |
| Wheel Studs Included | No |
| Flange Diameter | 5.370 IN |
| Flange Diameter | 136.400 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8482105016 |
| Country of Origin (Primary) | JP |
| UPC | 00805890562771 |
CENTRIC 400.33001 Cross References
| Brand | Part Number |
|---|---|
| BCA | WE61860 |
| GMB | 7803020 |
| MEVOTECH | H513262 |
| N/A | 57BWKH04DYA5C01E8, H513262, HA590198, 513262, BR930823, 8V0498625, 5K0 498 621A, 5K0498621A, 1K0 407 621E, 1K0 498 621, 1K0407621E, 1K0498621, 713262 |
| NTN | WE61860 |
CENTRIC 400.33001 Fits Vehicles
- Volkswagen Golf Alltrack (2017-2018)
- Audi A3 Sportback e-tron (2016-2018)
- Volkswagen Golf SportWagen (2015-2018)
- Audi S3 (2015-2020)
- Volkswagen e-Golf (2015-2020)
- Audi A3 Quattro (2010-2013, 2015-2019)
- Seat Leon (2013-2016)
- Volkswagen Jetta (2010-2012, 2014-2019)
- Volkswagen GTI (2006-2011)
- Volkswagen Golf (2006, 2010-2020)
- Audi A3 (2006-2013, 2015-2019)
