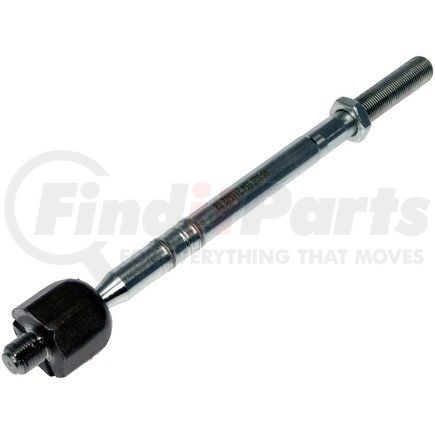

DORMAN TI120000 Part Description
Manufacturer
Product Description
Steering Tie Rod End
Application Summary
Audi 2015-07, Porsche 2018-08, Porsche 2006-03, Volkswagen 2022-04
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
Steering Tie Rod End
DORMAN TI120000 Specifications
Product Attributes
| Center Mount Stud Quantity | 1 |
| End 1 Attachment Type | Roscado |
| End 2 Attachment Type | Roscado |
| End 2 Type | Roscado |
| Head Drive Type | Slotted |
| Material | Acero |
| Outside Diameter | 17.20 mm |
| Package Contents | 1 Nut |
| Thread Pitch | 1.5 mm |
| Tie Rod End Thread Diameter | 16 mm |
| Weight | 1.49 lb |
| Length | 304 MM |
| Color | Noir |
| End 1 Gender | Macho |
| End 2 Gender | Macho |
| Finish | Revestidos |
| Pre-Greased | Oui |
| Grease Fitting Included | Non |
| Dust Boot Included | Non |
| Width | 40 MM |
| Type | Recto |
| Mounting Hardware Included | Oui |
| End 2 Thread Diameter | 16 MM |
| Height | 40 MM |
| Grade Type | Reemplazo estándar |
| Housing Material | Acero |
| Tube Diameter | 17.20 MM |
| Adjustable | Oui |
| Cone Outside Diameter | 11.57 MM |
| Bearing Material | Polímero |
| End 1 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| End 2 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Grade | Reemplazo estándar |
| Stud Type | Roscado |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Tie Rod Material | Acero |
| End 1 Thread Diameter | 16 MM |
| Ball Joint Included | Oui |
| Bolts Included | Non |
| Center Mount Hole Quantity | 0 |
| Head Drive Type | Ranurado |
| Dust Boot Material | Policloropreno |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador |
| Contenidos del paquete | 1 extremo del terminal de la dirección, 1 rótula (ball joint), 1 tuerca |
| Outside Diameter | 17.20 mm MM |
| Thread Pitch | 1.5 mm mm |
| Tie Rod End Thread Diameter | 16 mm mm |
| Weight | 1.49 Lbs LB |
| Center Mount Stud Quantity | 1 IN |
| Diámetro de la rosca de la terminal de la dirección | 16mm MM |
| Diámetro la rosca de extremo 1 | 16mm MM |
| Diámetro la rosca de extremo 2 | 16mm MM |
| End 1 Thread Diameter | 16 mm MM |
| End 1 Thread Pitch | 1.5 mm mm |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador IN |
| Paso de rosca | 1,5mm MM |
| Espacio de la rosca del extremo 2 | 1,5mm MM |
| Espacio de la rosca del extremo 1 | 1,5mm MM |
| End 2 Thread Pitch | 1.5 mm MM |
| End 2 Thread Diameter | 16 mm MM |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00889245912541 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TI120000 Cross References
| Brand | Part Number |
|---|---|
| Delphi | TA2391, TL2027 |
| MEVOTECH | MS70700 |
| MOOG Chassis Products | EV801090 |
| Mevotech Supreme | MS70600 |
| SUSPENSIA | X52TR4265 |
| Volkswagen | 2H0419803, 2H0419804, 7L0422803B, 7L0422803D, 7L0422804B, 7L0422804D, 95534703122, 95534703220, 95534703221, 95534703222 |
DORMAN TI120000 Fits Vehicles
- Volkswagen Amarok (2011-2024)
- Audi Q7 (2007-2015)
- Volkswagen Touareg (2004-2018)
- Porsche Cayenne (2003-2006, 2008-2018)
DORMAN TI120000 Customer Reviews
No reviews yet
Be the first to review this product!
DORMAN TI120000 Manufacturer Information
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
