SPICER 5-3228X Part Description
Manufacturer
Product Description

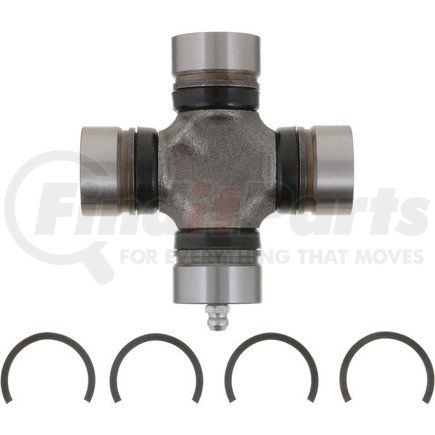

Universal Joint Greaseable 7260 Series
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
Universal Joint
SPICER 5-3228X Specifications
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (1) | 1.078 IN |
| OEM Mfg | Detroit |
| OEM Series | 7260 |
| Type | ISR Style |
| Bearing Cap Diameter (2) | 1.078 IN |
| Bearing Cap Type | Round with ISR Groove |
| Snap Ring Included | Yes |
| Snap Ring Type | Internal |
| Grease Zerk Included | Yes |
| Pre Greased | No |
| Grease Fitting Location | In Bearing Cap |
| Greaseable | Yes |
| Bearing Cap Diameter A (mm) | 27.381 MM |
| Bearing Cap Diameter B (mm) | 27.381 MM |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Hardware Included | No |
| Length A (In) | 2.125 IN |
| Length A (mm) | 53.975 MM |
| Length B (In) | 2.125 IN |
| Length B (mm) | 53.975 MM |
| Mounting Hardware Included | No |
| Distance Btw Snap Ring Grooves | 2.125 |
| Distance Btw Snap Ring Grooves (ISR) (2) | 2.125 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708998180 |
| UPC | 00023913464431 |
| VMRS Code | 024002046 |
SPICER 5-3228X Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U0112, 45U0117, 45U0120, 45U0137, 45U0149 |
| Chrysler | 1752624, 2298908, 2298909, 3004900, 3780250, 4364400, 4384514 |
| DANA | 25-3228X, 5-789X |
| Dana Commercial Vehicle Service Parts | 5-1306-1X |
| MOOG Chassis Products | 245, 246, 315, 315G, 317 |
| MasterPro | 245, 246, 315, 317, 315G |
| NEAPCO | 1-6300 |
| Neapco OE Series | 1-6300 |
| Precision | 245, 246, 315, 315G, 317 |
| SKF | UJ246, UJ315G, UJ317 |
| SVL | 15-789X |
