(888) 312-8812 Login SignupDELPHI TA6395 Tie Rod End
Tap to view 2 more
$2849
Limited availability at this price!
In Stock
Get it by Friday, Mar 13
DELPHI TA6395 Part Description
Manufacturer
Product Description

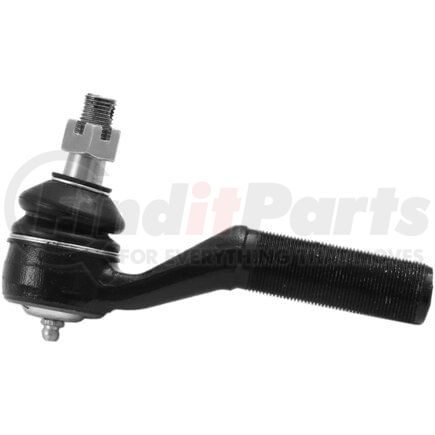

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Steering Tie Rod End - Front, Left, Outer, Straight, Pre-Greased
DELPHI TA6395 Specifications
Product Attributes
| Position(s) | Left Outer |
| Length | 168.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 45 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 1.000 IN |
| End 2 Thread Diameter | 25.40 MM |
| Height | 95.00 MM |
| Grade Type | Standard Replacement |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 2.094 lb |
| Cone Outside Diameter | 0.701 IN |
| Cone Outside Diameter | 17.80 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Grade | Premium |
| Stud Type | Threaded |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.598 IN |
| Length - Stud Center to End | 66.00 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 17.80 MM |
| Stud Length | 17.80 MM |
| Boot Color | Black |
| Shank Length | 0.701 IN |
| Stud Length | 0.701 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604380185 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA6395 Cross References
DELPHI TA6395 Fits Vehicles
- Ford E-350 Super Duty (2008-2019, 2021-2022)
- Ford E-450 Super Duty (2008-2019)
- Ford E-250 (2008-2014)
- Ford E-150 (2007-2014)
