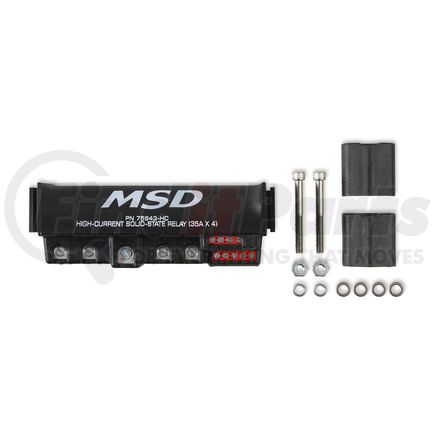

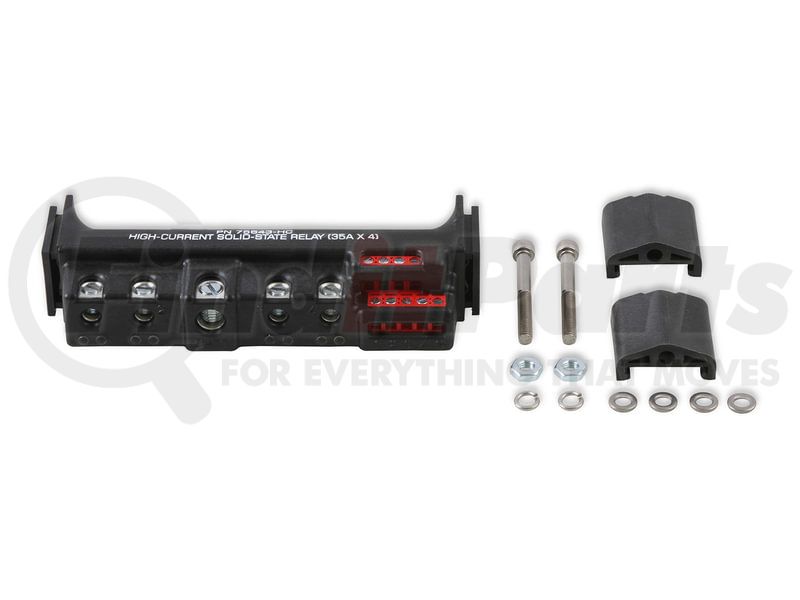

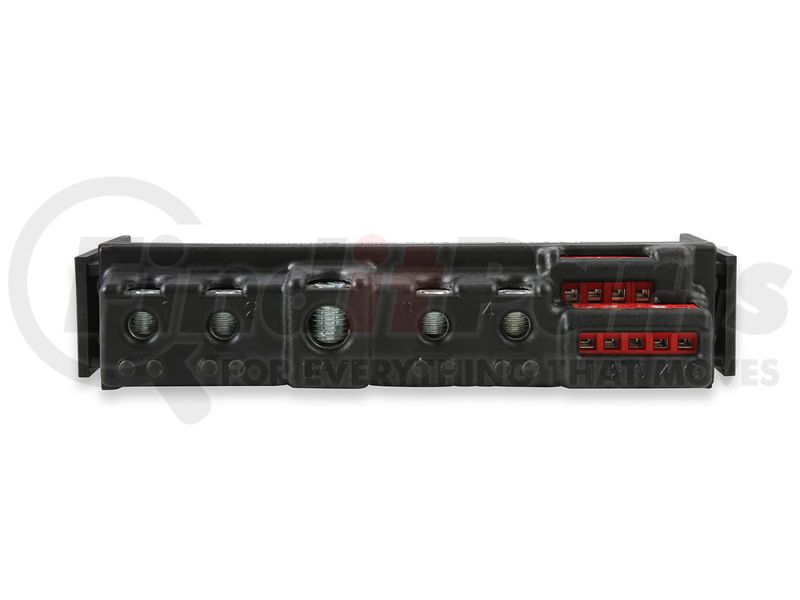

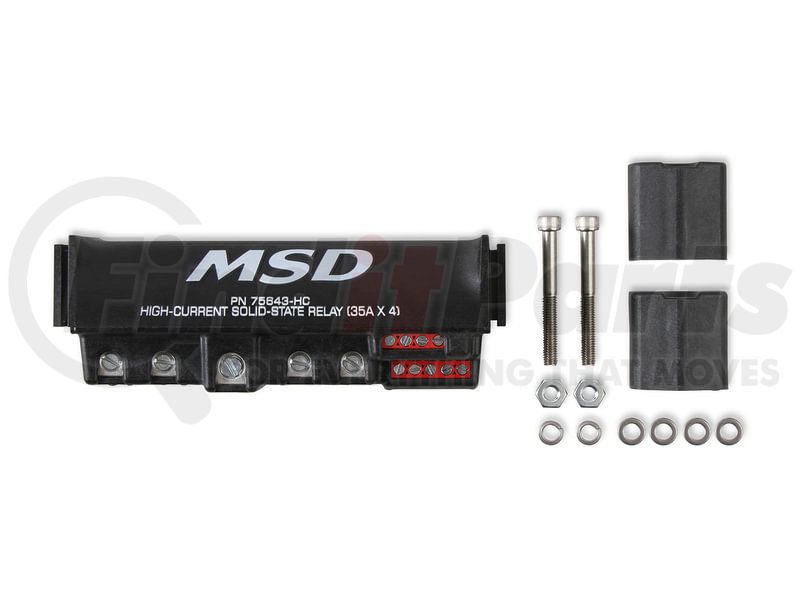

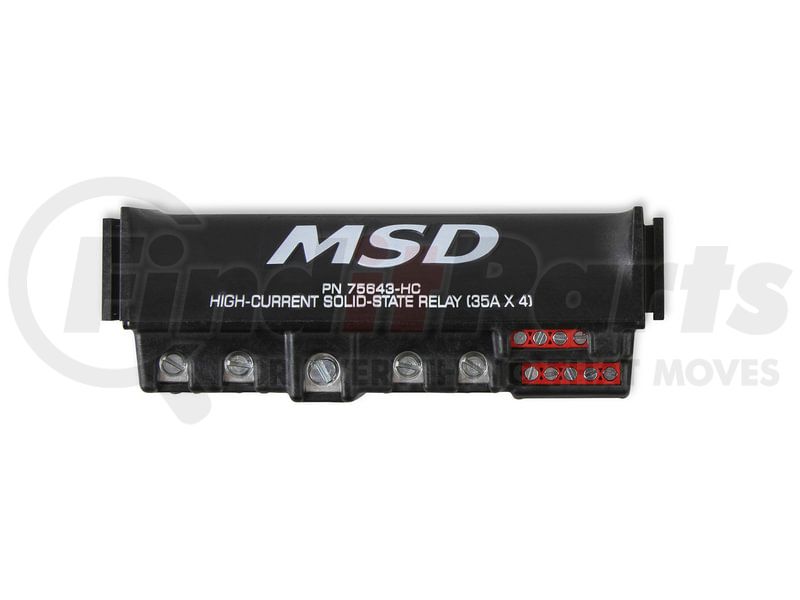

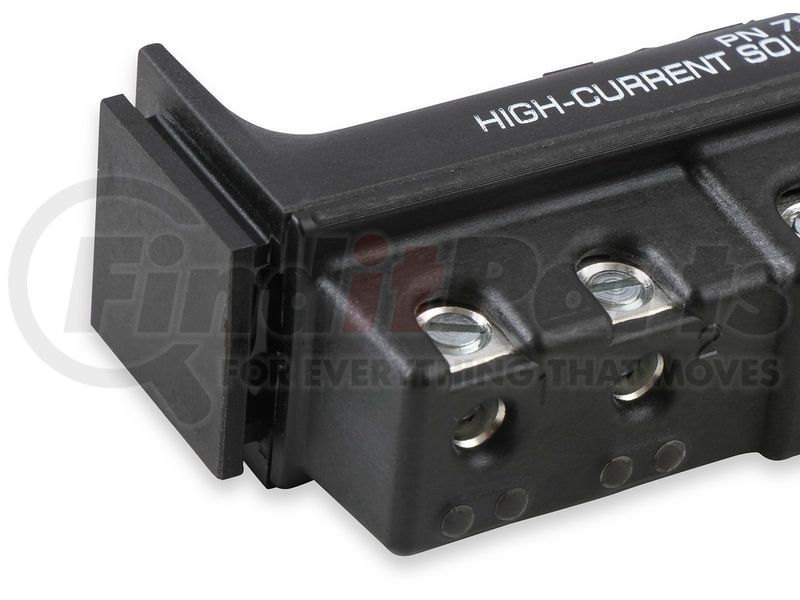

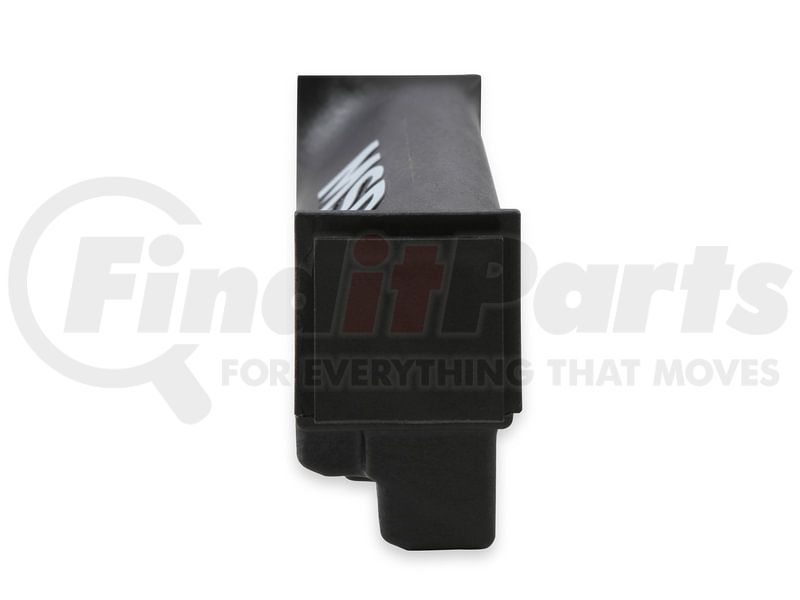

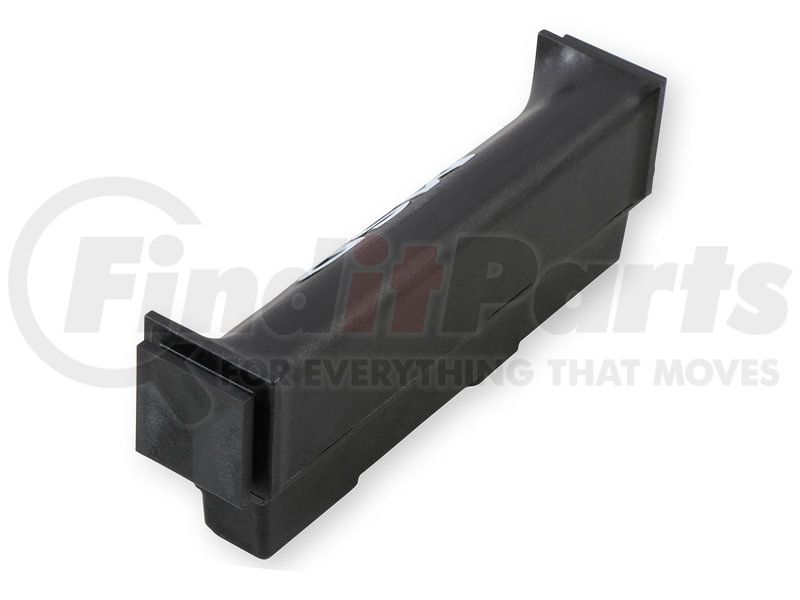

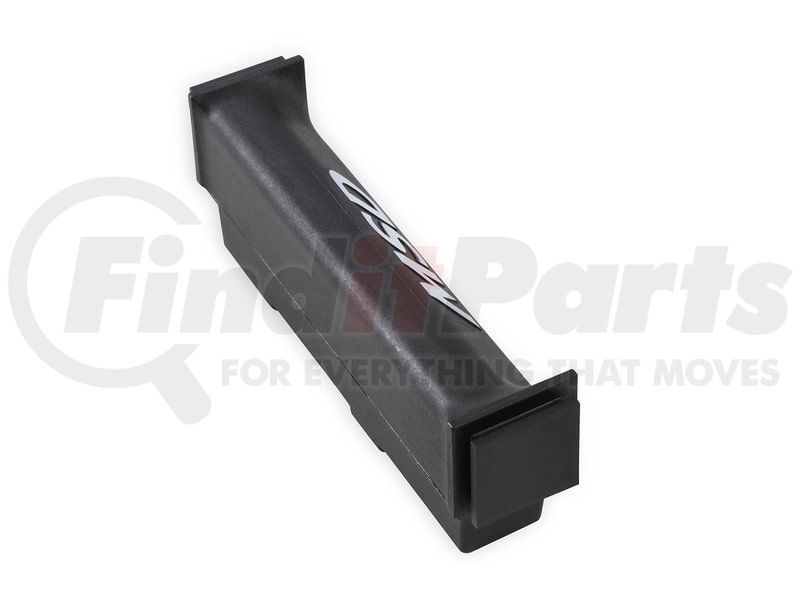

(888) 312-8812 Login SignupMSD 75643-HC High-Current Solid-State Relay 35Ax4, Black
Tap to view 12 more
$31649
Limited availability at this price!
In Stock
Get it by Monday, Mar 9
MSD 75643-HC Part Description
Manufacturer
Product Description
High-Current Solid-State Relay 35Ax4, Black
Features & Benefits
- Combined total continuous current rating of 140 amps
- Single wire activation by switching power or ground
- Available in Red or Black
- Channels can be run in parallel for devices requiring more than 35 Amp single-channel rating
- Operates from 7-Volts to 20-Volt supply
- 4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
- Over-temp, short circuit and overload protection

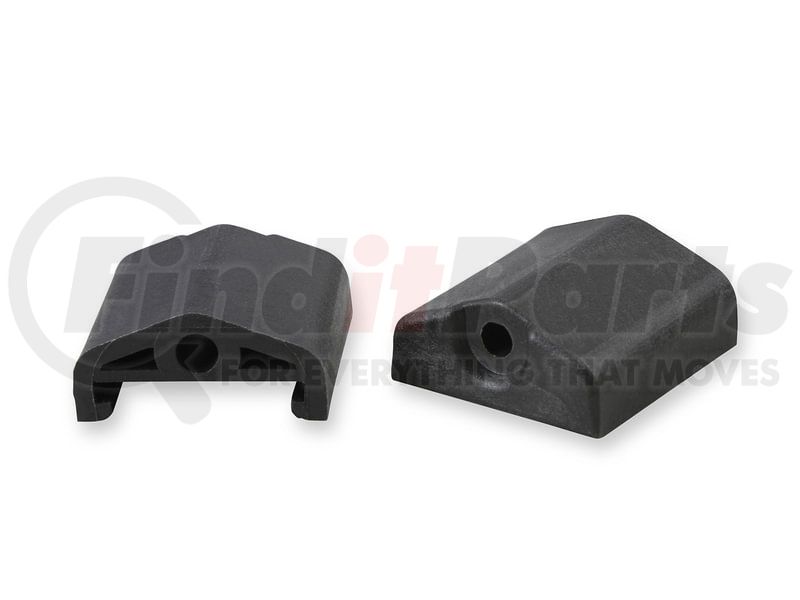

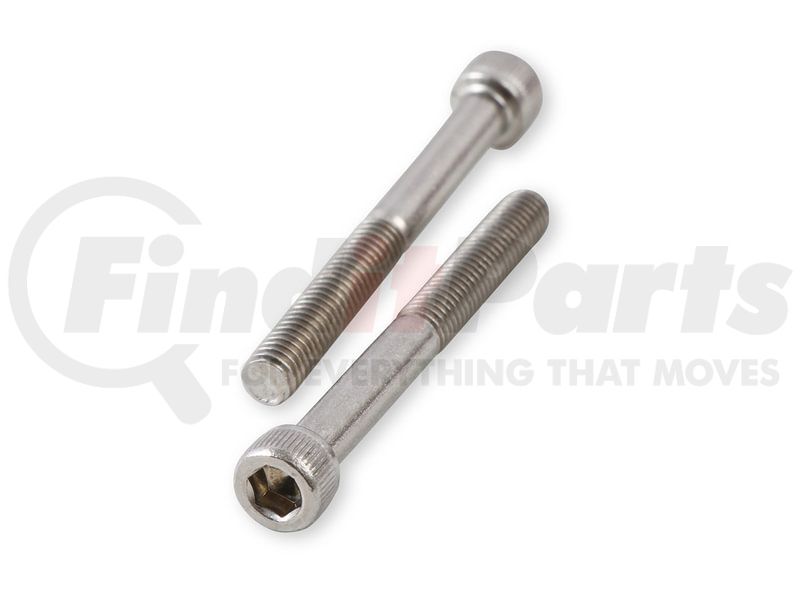

- Multiple mounting options
- A PWM signal can be used in the Solid-State Relay Module with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%.

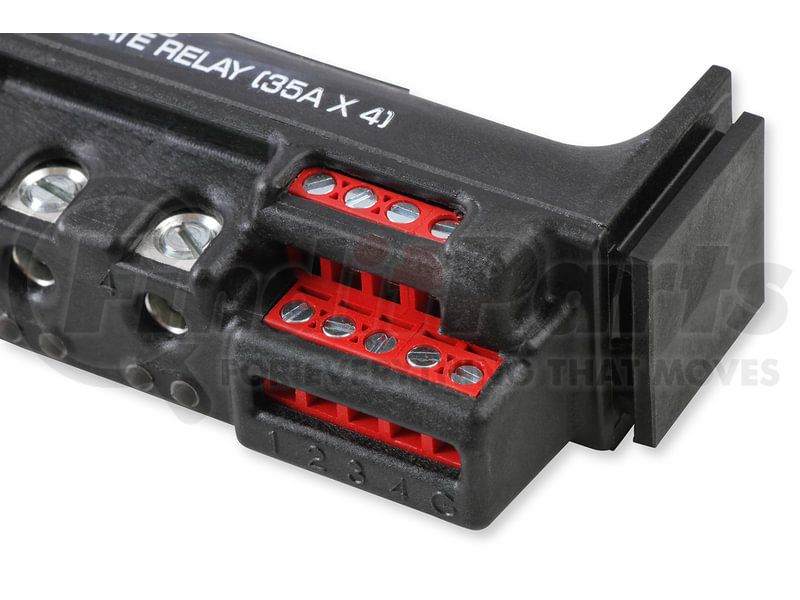

- Diagnostic LED’s and status indicators
- Clean, easy install with minimum wiring
* Amperage rating is per channel *Recommended Wire Gauge: Main Input BATT + - 2 AWG Channel 1-4 Outputs - 8 AWG 12 Volt and Ground Activation Wires - 18-22 AWG
MSD 75643-HC Specifications
Product Attributes
| Amperage Rating per Channel | 35 68 |
| Brand | MSD |
| Category | Electrical, Lighting and Body |
| Channel Count | 4 |
| Color | Black |
| Emission Code | 5 |
| Part Type | Multi-Purpose Relay |
| Product Type | Solid State Relay |
| Sub Category | Relays |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
Additional Information
| Warranty Special | Manufacturer's Limited 1 Year Warranty |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8511804000 |
| Harmonized Tariff Code (HTS) | 8511804000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00090127108406 |
