CENTRIC 125.67054 Part Description
Manufacturer
Product Description
Premium High-Carbon Rotor
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

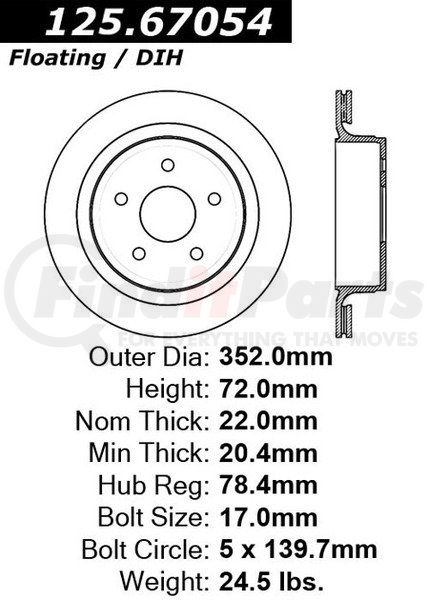

CENTRIC 125.67054 Specifications
Product Attributes
| Hat Id [cntrc] In | 7.992 |
| Hat Id [cntrc] Mm | 203.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 8.157 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.140 |
| Weight [cntrc] Lbs | 24.500 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Max Pb Drum Dia [cntrc] Mm | 207.200 |
| Discard Thickness | 20.400 MM |
| Discard Thickness | 0.803 IN |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Hat Finish | Painted |
| Overall Height | 2.835 IN |
| Overall Height | 72.000 MM |
| Outside Diameter | 352.000 MM |
| Outside Diameter | 13.858 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 206.000 MM |
| Nominal Drum Diameter | 8.110 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.091 IN |
| Center Hole Diameter | 78.500 MM |
| Mounting Bolt Hole Circle Diameter | 140.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.512 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 17.000 MM |
| Stud/Lug Hole Diameter | 0.669 IN |
CENTRIC 125.67054 Cross References
CENTRIC 125.67054 Fits Vehicles
- Ram 1500 Classic (2019-2023)
- Ram 4000 (2016)
- Ram 1500 (2011-2018)
- Dodge Dakota (2010, 2012)
- Chrysler Aspen (2007-2009)
- Dodge Durango (2004-2009)
- Dodge Ram 1500 (2002-2010)
