CENTRIC 125.66041 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

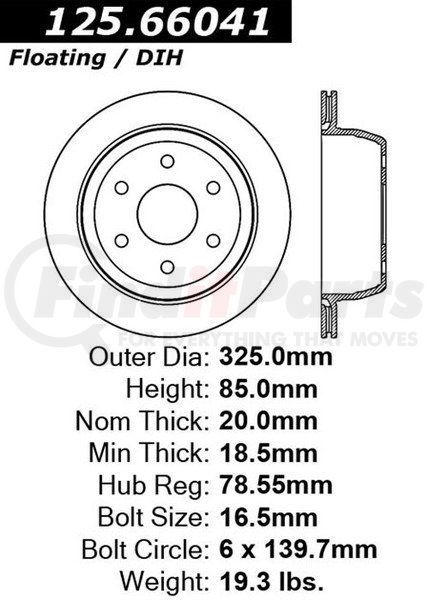

CENTRIC 125.66041 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 8.750 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 19.250 |
| Discard Thickness | 0.728 IN |
| Discard Thickness | 18.500 MM |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20.000 MM |
| Hat Finish | Painted |
| Overall Height | 85.300 MM |
| Overall Height | 3.358 IN |
| Outside Diameter | 325.000 MM |
| Outside Diameter | 12.795 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 210.200 MM |
| Nominal Drum Diameter | 8.276 IN |
| Bearings Included | No |
| Center Hole Diameter | 78.700 MM |
| Center Hole Diameter | 3.098 IN |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.646 IN |
| Stud/Lug Hole Diameter | 16.400 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890133278 |
CENTRIC 125.66041 Cross References
CENTRIC 125.66041 Fits Vehicles
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- GMC Yukon XL 1500 (2000-2002)
- GMC Yukon (2000-2002)
- GMC Sierra 1500 HD (2001)
- GMC Sierra 1500 (1999-2006)
- GMC Safari (2003-2005)
- Chevrolet Tahoe (2000-2002)
- Chevrolet Suburban 1500 (2000-2002)
- Chevrolet Silverado 1500 HD (2001)
- Chevrolet Silverado 1500 (1999-2006)
- Chevrolet Avalanche 1500 (2002)
- Chevrolet Astro (2003-2005)
