CENTRIC 125.65013 Part Description
Manufacturer
Product Description

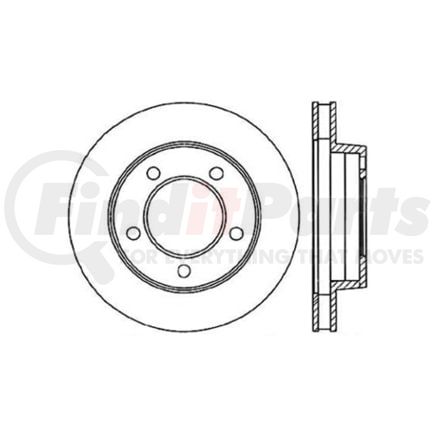

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

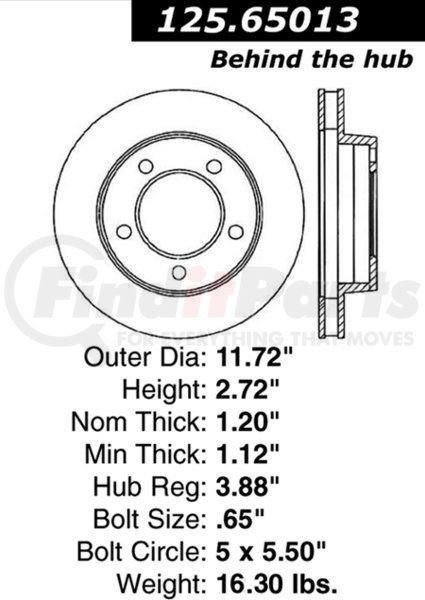

CENTRIC 125.65013 Specifications
Product Attributes
| Weight [cntrc] Kgs | 5.550 |
| Disc Mounting [cntrc] | Behind the Hub |
| Inner Bearing # [cntrc] | 410.91037 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 12.200 |
| Inner Seal # [cntrc] | 417.68001 |
| Outer Bearing # [cntrc] | 410.91035 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 28.450 MM |
| Discard Thickness | 1.120 IN |
| Nominal Thickness | 30.400 MM |
| Nominal Thickness | 1.197 IN |
| Hat Finish | Painted |
| Overall Height | 69.000 MM |
| Overall Height | 2.717 IN |
| Outside Diameter | 297.700 MM |
| Outside Diameter | 11.720 IN |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.878 IN |
| Center Hole Diameter | 98.500 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Diameter | 16.400 MM |
| Mounting Bolt Hole Diameter | 0.646 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890132455 |
CENTRIC 125.65013 Cross References
CENTRIC 125.65013 Fits Vehicles
- Ford F-150 (1976-1993)
- Ford F-100 (1976)
- Ford Bronco (1976-1993)
