CENTRIC 125.42077 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

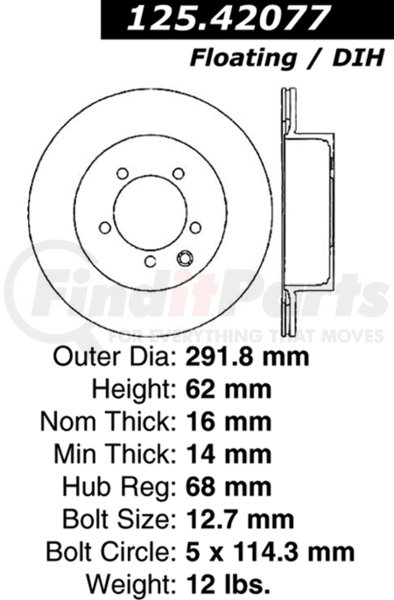

CENTRIC 125.42077 Specifications
Product Attributes
| Weight [cntrc] Lbs | 12.000 |
| Weight [cntrc] Kgs | 5.450 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] Mm | 156.700 |
| Misc Holes [cntrc] | 1 |
| Hat Id [cntrc] In | 6.169 |
| Discard Thickness | 14.000 MM |
| Discard Thickness | 0.551 IN |
| Nominal Thickness | 0.630 IN |
| Nominal Thickness | 16.000 MM |
| Hat Finish | Painted |
| Overall Height | 62.000 MM |
| Overall Height | 2.441 IN |
| Outside Diameter | 291.800 MM |
| Outside Diameter | 11.488 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 172.000 MM |
| Nominal Drum Diameter | 6.772 IN |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.500 IN |
| Stud/Lug Hole Diameter | 12.700 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890277101 |
CENTRIC 125.42077 Cross References
CENTRIC 125.42077 Fits Vehicles
- Nissan Rogue Sport (2017-2022)
- Nissan Rogue Select (2014-2015)
- Nissan Juke (2014-2017)
- Nissan LEAF (2011-2023)
- Renault Koleos (2009-2016, 2018)
- Nissan Rogue (2008-2020)
- Nissan X-Trail (2002-2016, 2018)
- INFINITI G35 (2003-2005)
- Nissan 350Z (2003-2005)
