(888) 312-8812 Login SignupCENTRIC 2240-4-4S Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 2240-4-4S Part Description
Manufacturer
Product Description

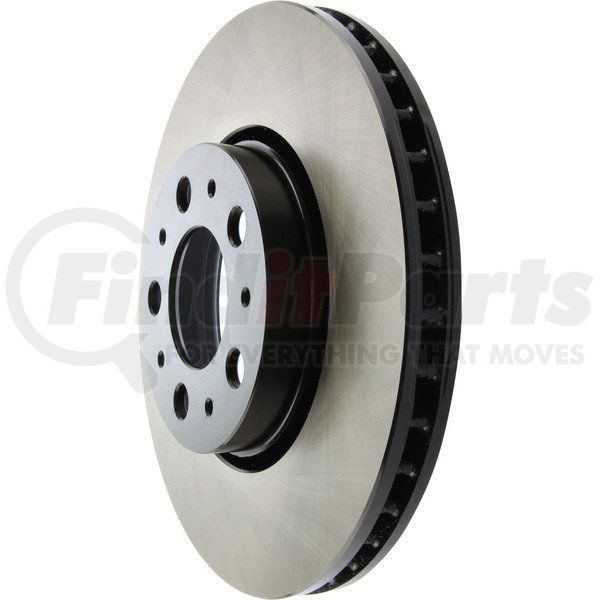

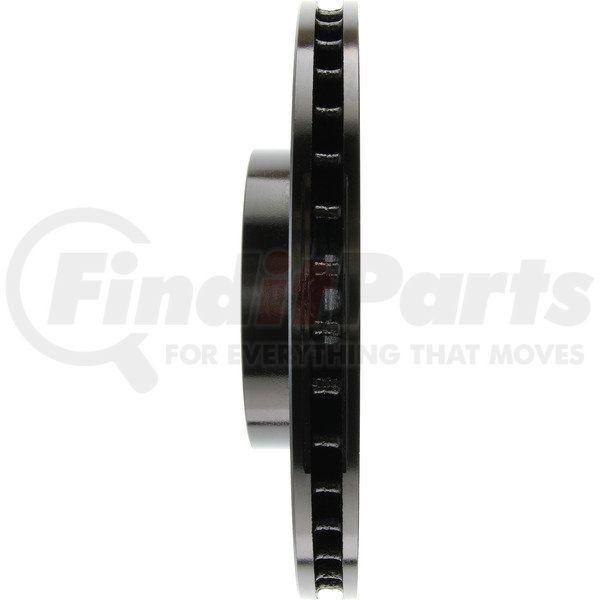

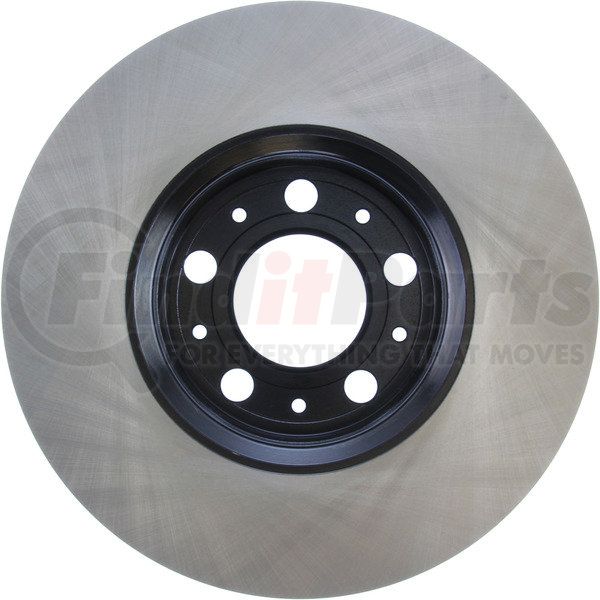

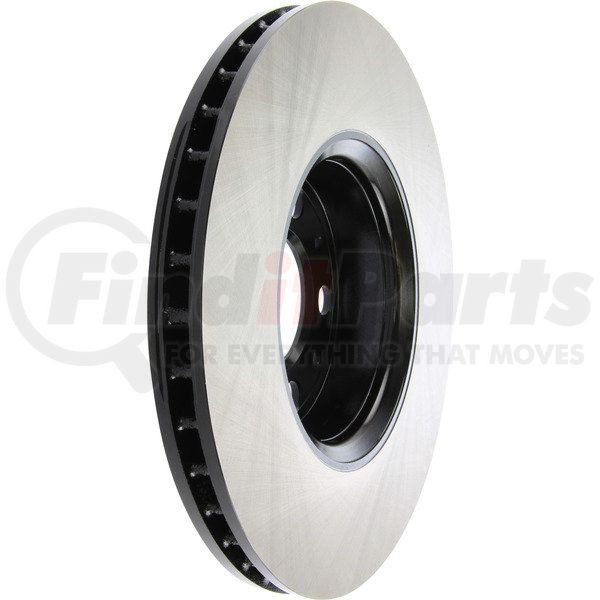

Premium High Carbon Alloy Brake Rotor
Application Summary
2001 - 2009 Volvo S60, 1999 - 2006 Volvo S80, 2001 - 2007 Volvo V70, 2003 - 2007 Volvo XC70
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
High Carbon Alloy; Centric Parts; CentricParts; Centric Brake Rotors CentricParts Break Rotor; StopTech; Stop Tech; StopTech Hig Carbon Rotor
CENTRIC 2240-4-4S Specifications
Product Attributes
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23.00 MM |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26.00 MM |
| Hat Finish | Coated |
| Outside Diameter | 11.260 IN |
| Outside Diameter | 286.00 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.00 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108.00 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.650 IN |
| Stud/Lug Hole Diameter | 16.50 MM |
| Disc Mounting [cntrc] | Floating |
| Height | 50.20 |
| Hub Hole/Whl Reg [cntrc] | 68 MM |
| Misc Holes [cntrc] | 5 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 6.730 KG |
| Weight [cntrc] | 14.800 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890273141 |
CENTRIC 2240-4-4S Cross References
CENTRIC 2240-4-4S Fits Vehicles
- Volvo XC70 (2003-2007)
- Volvo V70 (2001-2007)
- Volvo S80 (1999-2006)
- Volvo S60 (2001-2009)
