CENTRIC 125.38011 Part Description
Manufacturer
Product Description

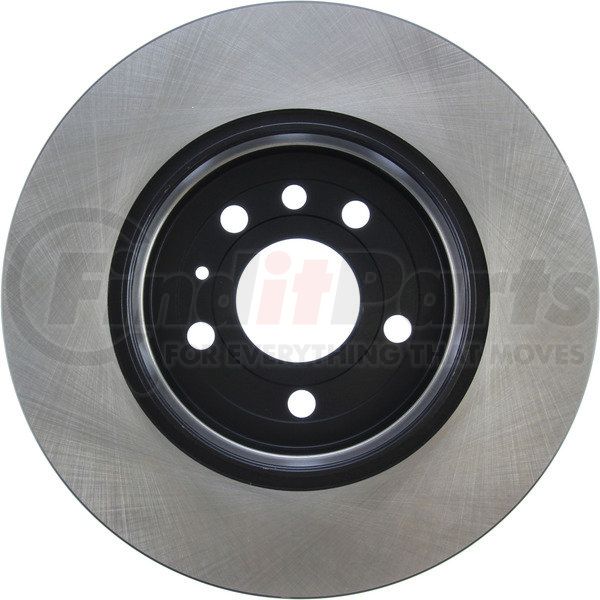

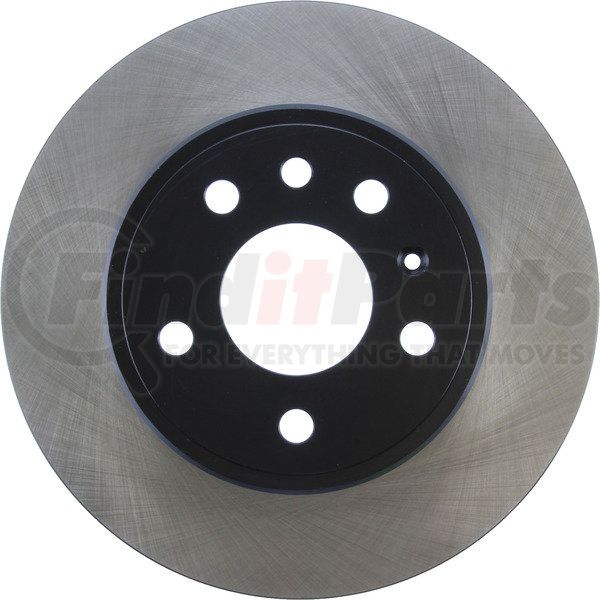

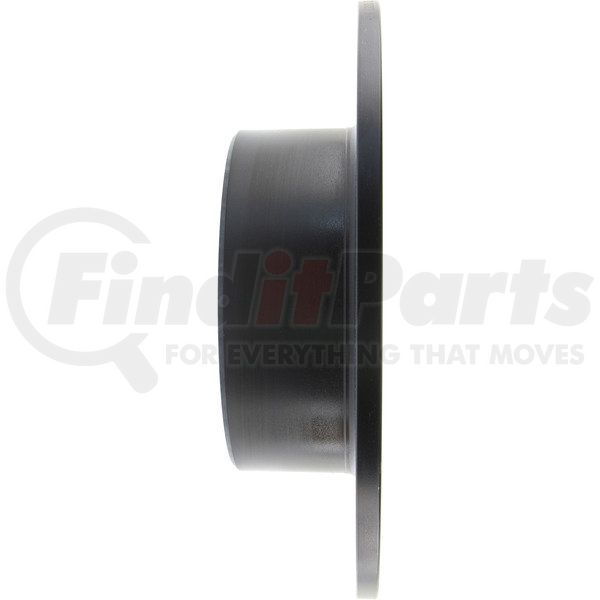

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.38011 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 5.030 |
| Weight [cntrc] Lbs | 11.060 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Stud/Lug Hole Diameter | 0.561 IN |
| Stud/Lug Hole Diameter | 14.250 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110.000 MM |
| Center Hole Diameter | 65.500 MM |
| Center Hole Diameter | 2.579 IN |
| Bearings Included | No |
| Nominal Drum Diameter | 6.299 IN |
| Nominal Drum Diameter | 160.000 MM |
| Solid Or Vented Type Rotor | Solid |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 11.260 IN |
| Outside Diameter | 286.000 MM |
| Overall Height | 69.200 MM |
| Overall Height | 2.724 IN |
| Hat Finish | Painted |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.000 MM |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890271161 |
CENTRIC 125.38011 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | SP10226, 410226 |
| N/A | 1.3428.5.4, 410226, 125.38011, 64 22 120, R9127545, 34126, YH145284, 34126G, 90512910, 569118, 5024260, 4837027, 4565693, 93297970, 22701852, 5391578, 569210, 4839015, 4839338, 90495269, 21019258, 96758P, 145284, 86758, 4886758, DDF811, DDF1083, DF2773, EBR612, 90065010, 18A1091, 18A1091A, 430.1475.00 |
| RAYBESTOS | 96758, 96758R |
| Raybestos Brakes | 96758, 96758R |
| WAGNER | BD125572, BD126243E |
CENTRIC 125.38011 Fits Vehicles
- Saturn LW2 (2000)
- Saturn LS2 (2000)
- Saturn LS (2000)
- Saab 9-5 (1999)
- Saab 9-3 (1999-2003)
- Saab 900 (1997-1998)
- Chevrolet Astra (2000-2008)
- Saturn LW300 (2001-2003)
- Saturn L300 (2001-2005)
