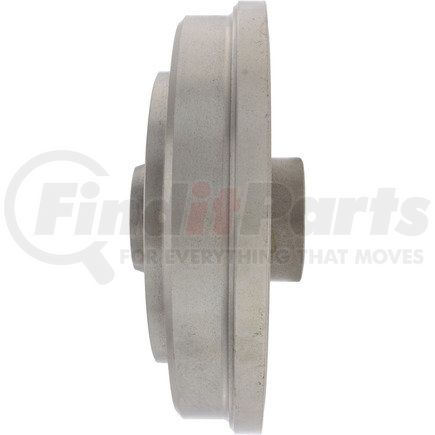

(888) 312-8812 Login SignupCENTRIC 123.44029 C-Tek Standard Brake Drum
Tap to view 4 more
$4549
Limited availability at this price!
In Stock
Get it by Monday, Mar 9
CENTRIC 123.44029 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.44029 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.023 |
| Weight [cntrc] Lbs | 8.850 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 54.000 |
| Hub Hole / Register [cntrc] In | 2.126 |
| Height [cntrc] Mm | 80.500 |
| Height [cntrc] In | 3.169 |
| Friction Surface Width [cntrc] Mm | 31.780 |
| Friction Surface Width [cntrc] In | 1.251 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 181.000 MM |
| Maximum Brake Diameter (Discard) | 7.126 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 207.000 MM |
| Outside Diameter | 8.150 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.800 MM |
| Mounting Hole Diameter | 0.543 IN |
| Nominal Drum Diameter | 180.000 MM |
| Nominal Drum Diameter | 7.087 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890051879 |
CENTRIC 123.44029 Cross References
| Brand | Part Number |
|---|---|
| 9494DGS, 9643, 9547, 9494, 109547, 52125355, BD125355 | |
| MAGMA PRODUCTS | PMU56033, PMU56030 |
| N/A | 0802571, 52125355, BD125355, 35014, 3576, 35061, BD35014, BD35061, BD3576, 4240310020, 35014G, 35015G, 3576G, 35061G, 116301, 4240310060, 4240316030, 4240319015, 4240319075, 4240319085, 100473, 207625, 207353, 207390, 140590, PDR0590, PDR0643, 6401675, 6401685, 1188, JBD364E, 87494, 87547, 87643, 21089, X30756, 109547, 9643, 9643R, 9494, 9494DGS, 9494R, 9547R, 9547, 9643DGS, 9547DGS, 78822027, 78-22027, 7822027, 36576028 |
| PRONTO | BD3576 |
| RAYBESTOS | 9643, 9643R |
| WAGNER | BD125178, BD125355, BD125587 |
CENTRIC 123.44029 Fits Vehicles
- Toyota Tercel (1991-1999)
- Toyota Paseo (1992-1999)
