FRAM PH12747 Part Description
Manufacturer
Product Description

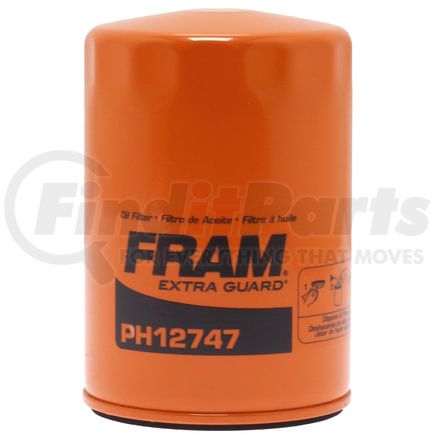

FRAM, PH12747, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
FRAM, PH12747, Oil Filter
FRAM PH12747 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.36 IN |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Housing Color | Orange |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Outer Diameter Bottom | 3.684 IN |
| Attachment Type | Spin-On |
| Bypass Relief Valve Setting | 18-24 PS |
| Gasket Type | Base |
| Grade | Advanced |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | M22x1.5 MM |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Metric |
| Inner Thread Diameter | M22x1.5 MM |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100576316 |
| UNSPSC | 15121501 |
FRAM PH12747 Cross References
| Brand | Part Number |
|---|---|
| Baldwin | B40150 |
| Carquest Premium Filters | 95324 |
| General Motors | 12684038 |
| LUBER-FINER | PH26 |
| Mobil 1 | M1-210A, M1-201A |
| NAPA Gold Filters | 100454 |
| PUROLATOR | L22500, PL22500, L24651, PL24651, PBL22500, PBL24651, TL22500, TL22500BP, TL24651, TL24651BP |
| Premium Guard | PG99522EX |
| Premium Guard Extended Life | PG99522EX |
| PurolatorONE | PL11513 |
| STP | S45019, S45019XL, SL45019 |
| STP Filters | S45019, S45019XL, SL45019 |
| Valvoline | VO-203 |
| WIX FILTERS | WL10454XP, WL10454, WL10255 |
| Wix | WL10454 |
FRAM PH12747 Fits Vehicles
- Suzuki Aerio (2002)
- Chevrolet Silverado 4500 HD (2020-2022)
- Chevrolet Silverado 5500 HD (2019-2022)
- Chevrolet Silverado 6500 HD (2019-2022)
- GMC Sierra 2500 HD (2020-2026)
- GMC Sierra 3500 HD (2020-2026)
- Chevrolet Silverado 3500 HD (2020-2024, 2026)
- Chevrolet Silverado 2500 HD (2020-2026)
