CENTRIC 122.66024 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

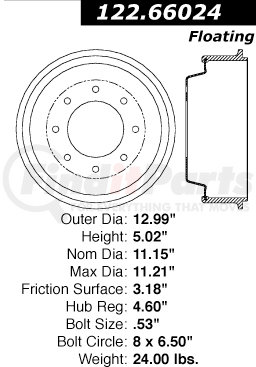

CENTRIC 122.66024 Specifications
Product Attributes
| Misc Holes [cntrc] | 4 |
| Weight [cntrc] Kgs | 10.909 |
| Weight [cntrc] Lbs | 24.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Hub Hole / Register [cntrc] Mm | 116.840 |
| Hub Hole / Register [cntrc] In | 4.600 |
| Height [cntrc] Mm | 127.508 |
| Height [cntrc] In | 5.020 |
| Friction Surface Width [cntrc] Mm | 80.772 |
| Friction Surface Width [cntrc] In | 3.180 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 285.500 MM |
| Maximum Brake Diameter (Discard) | 11.240 IN |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 329.946 MM |
| Outside Diameter | 12.990 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.462 MM |
| Mounting Hole Diameter | 0.530 IN |
| Nominal Drum Diameter | 283.200 MM |
| Nominal Drum Diameter | 11.150 IN |
