(888) 312-8812 Login SignupCENTRIC 122.65001 Premium Brake Drum
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.65001 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

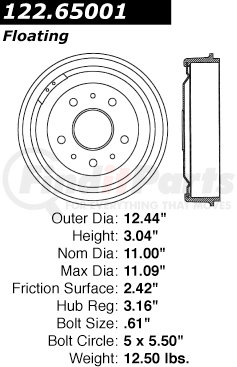

CENTRIC 122.65001 Specifications
Product Attributes
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Kgs | 5.682 |
| Weight [cntrc] Lbs | 12.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 80.264 |
| Hub Hole / Register [cntrc] In | 3.160 |
| Height [cntrc] Mm | 77.216 |
| Height [cntrc] In | 3.040 |
| Friction Surface Width [cntrc] Mm | 61.468 |
| Friction Surface Width [cntrc] In | 2.420 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 281.700 MM |
| Maximum Brake Diameter (Discard) | 11.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 315.976 MM |
| Outside Diameter | 12.440 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 15.494 MM |
| Mounting Hole Diameter | 0.610 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
