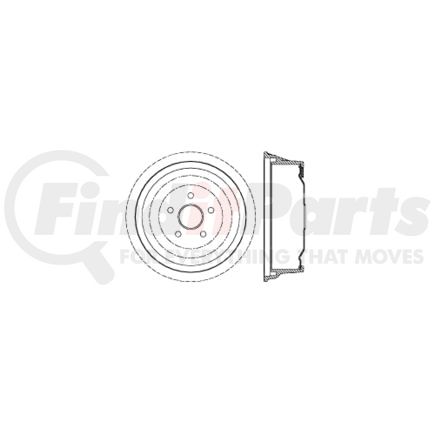

(888) 312-8812 Login SignupCENTRIC 122.61040 Prm Brake Drum
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.61040 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance
CENTRIC 122.61040 Specifications
Product Attributes
| Weight [cntrc] Kgs | 12.609 |
| Weight [cntrc] Lbs | 27.740 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 61.976 |
| Hub Hole / Register [cntrc] In | 2.440 |
| Height [cntrc] Mm | 109.982 |
| Height [cntrc] In | 4.330 |
| Friction Surface Width [cntrc] Mm | 72.136 |
| Friction Surface Width [cntrc] In | 2.840 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 282.400 MM |
| Maximum Brake Diameter (Discard) | 11.120 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 346.964 MM |
| Outside Diameter | 13.660 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 16.000 MM |
| Mounting Hole Diameter | 0.630 IN |
| Nominal Drum Diameter | 280.900 MM |
| Nominal Drum Diameter | 11.060 IN |
CENTRIC 122.61040 Cross References
| Brand | Part Number |
|---|---|
| GJ7Z7866601JB | |
| RAYBESTOS | 2620, 2620R |
| WAGNER | BD60174 |
