AUTOLITE AI5245 Part Description
Manufacturer
Product Description

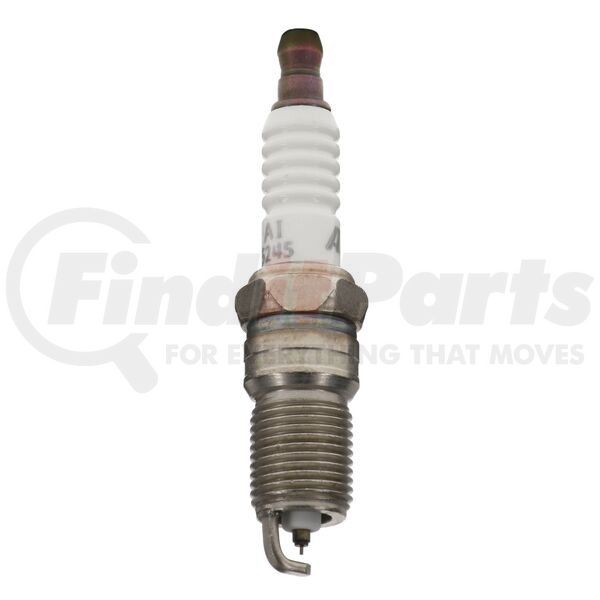

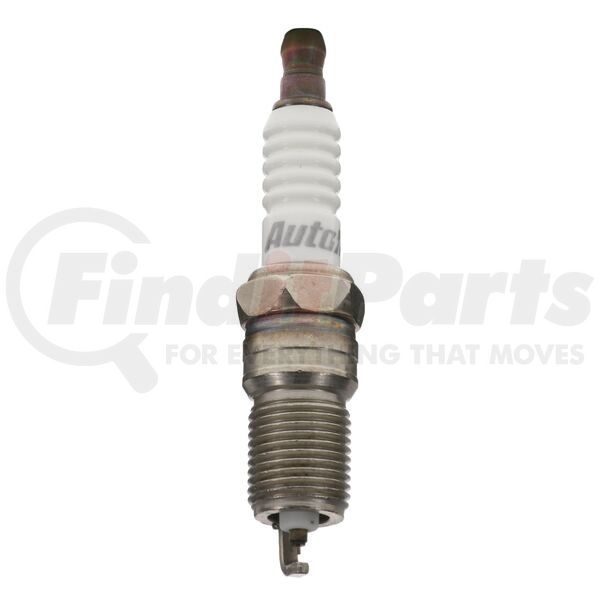

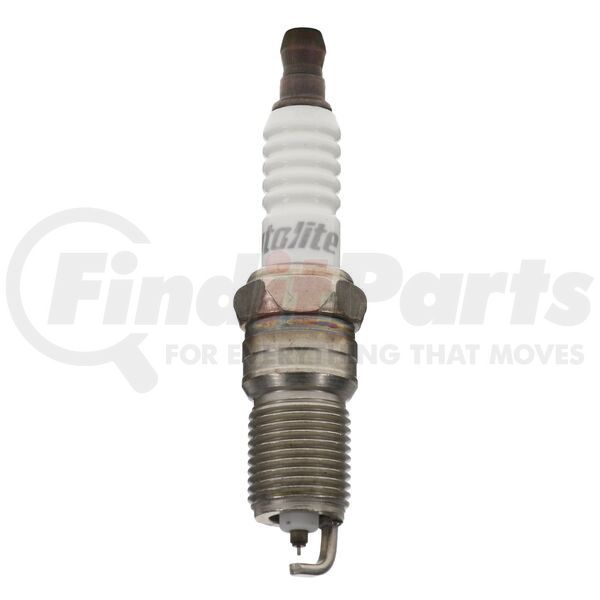

Autolite Iridium Ultra Finewire Spark Plug
Features & Benefits
- Autolite Iridium Ultra(R) is an engineered OE replacement iridium spark plug.
- Engineered with an iridium-enhanced laser-welded fine-wire center electrode that provides focused ignition, optimal ignitability, and maximum performance.
- A laser-welded, finewire iridium alloy center electrode provides optimal fuel efficiency, acceleration, and focused ignitability.
- Its proprietary platinum ground electrode provides increased durability and resistance to wear, extending the life of the plug.
- Nickel-plated shell to resist corrosion.
- The tapered ground wire enhances ignitability for improved combustion and performance.
- High-alumina ceramic insulator for increased strength.
- The high alumina ceramic multi-rib insulator insulator provides thermal conductivity and superior insulation for increased strength & prevents flash-over.
- Laser welded, finewire Iridium center electrode.
- The copper core within the plug provides reliable performance with higher thermal conductivity.
- Proprietary platinum sidewire technology.
- Includes a lifetime limited warranty that guarantees optimum performance equal to OE designed plugs.
ai5245
AUTOLITE AI5245 Specifications
Product Attributes
| Resistance | 4000 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | 0.044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 16 MM |
| Seat Type | Tapered |
| Reach | 17 MM |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Platinum |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Long Projection |
| Washer(s) Included | No |
| Grade Type | Performance |
| Hex Size | 5/8 IN |
| Manufacturer Heat Range | 10 |
| Reach | 0.679 IN |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Pre-Gap Size | 1.1176 MM |
| Thread Type Standard | Metric |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 4.8 MM |
| Thread Diameter | 14 MM |
| Center Electrode Insulator Tip Projection | 0.19 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100270733 |
| UNSPSC | 26101732 |
AUTOLITE AI5245 Cross References
AUTOLITE AI5245 Fits Vehicles
- GMC C8500 Topkick (2003-2009)
- GMC Sierra 1500 HD Classic (2007)
- Chevrolet Silverado 1500 HD Classic (2007)
- GMC Sierra 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- GMC C3500HD (2001-2002)
- Chevrolet C3500HD (2001-2002)
- Cadillac Escalade EXT (2002-2006)
- Cadillac Escalade ESV (2003-2006)
- Chevrolet Trailblazer EXT (2003-2006)
- GMC Envoy XUV (2004-2005)
- GMC Envoy XL (2003-2006)
- Isuzu NPR (2006-2014)
- Workhorse FasTrack FT1801 (2004-2005)
- Workhorse FasTrack FT1261 (2005)
- Workhorse FasTrack FT1601 (2004-2005)
- Workhorse FasTrack FT1461 (2004-2005)
- Workhorse FasTrack FT1061 (2004-2005)
- GMC Savana 4500 (2009-2012)
- Chevrolet Caprice (2011-2012)
- Hummer H3T (2009-2010)
- GMC Canyon (2009-2012)
- Chevrolet Colorado (2009-2012)
- Buick Allure (2008-2009)
- Hummer H3 (2008-2010)
- Pontiac G8 (2008-2009)
- GMC Sierra 3500 HD (2007-2012)
- Chevrolet Silverado 3500 HD (2007-2010)
- Buick LaCrosse (2008-2009)
- GMC C5500 Topkick (2003-2008)
- GMC C6500 Topkick (2003-2008)
- Chevrolet C6500 Kodiak (2003-2008)
- GMC C7500 Topkick (2003-2008)
- Chevrolet C7500 Kodiak (2003-2008)
- Chevrolet C5500 Kodiak (2003-2008)
- GMC C4500 Topkick (2003-2008)
- Chevrolet C4500 Kodiak (2003-2008)
- Chevrolet Avalanche (2007-2012)
- Chevrolet Trailblazer (2006-2009)
- Hummer H2 (2003-2009)
- Saab 9-7x (2005-2009)
- GMC Envoy (2005-2009)
- Pontiac GTO (2004-2006)
- Cadillac CTS (2004-2005)
- Buick Rainier (2004-2007)
- Pontiac Tempest (1987-1991)
- Avanti II (2001-2004)
- Pontiac Sunfire (1995-1997)
- Pontiac Sunbird (1991-1994)
- Pontiac Grand Prix (1988-1995, 2005-2008)
- Pontiac Grand Am (1994-1995)
- Pontiac Firebird (1999-2002)
- Pontiac 6000 (1987-1991)
- Oldsmobile Firenza (1987-1988)
- Oldsmobile Cutlass Supreme (1988-1995)
- Oldsmobile Cutlass Cruiser (1987-1989, 1994)
- Oldsmobile Cutlass Ciera (1987-1989, 1993-1996)
- Oldsmobile Achieva (1994-1995)
- GMC Yukon XL 2500 (2000-2012)
- GMC Yukon XL 1500 (2000-2012)
- GMC Yukon (2000-2012)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 2500 HD (2001-2012)
- GMC Sierra 2500 (1999-2004)
- GMC Sierra 1500 HD (2001-2003, 2005-2006)
- GMC Sierra 1500 (1999-2012)
- GMC Savana 2500 (2003-2012)
- GMC Savana 3500 (2001-2012)
- GMC Savana 1500 (2003-2012)
- GMC Sonoma (1994-1997)
- Chevrolet Tahoe (2000-2010)
- Chevrolet Suburban 2500 (2000-2012)
- Chevrolet Suburban 1500 (2000-2012)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 2500 HD (2001-2010)
- Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
- Chevrolet Silverado 2500 (1999-2004)
- Chevrolet Silverado 1500 (2000-2010)
- Chevrolet S10 (1994-1997)
- Chevrolet Monte Carlo (1995, 2006-2007)
- Chevrolet Lumina (1990-1995)
- Chevrolet LLV (1994-1995)
- Chevrolet Express 3500 (2001-2010)
- Chevrolet Express 2500 (2003-2012)
- Chevrolet Express 1500 (2003-2010)
- Chevrolet Corvette (1997-2007)
- Chevrolet Corsica (1987-1996)
- Chevrolet Celebrity (1987-1990)
- Chevrolet Cavalier (1987-1997)
- Chevrolet Camaro (1999-2002, 2014-2015)
- Chevrolet Avalanche 1500 (2002-2006)
- Chevrolet Avalanche 2500 (2002-2006)
- Chevrolet Beretta (1987-1996)
- Cadillac Escalade (2002-2006, 2009-2010)
- Cadillac Cimarron (1987-1988)
- Buick Skylark (1994-1995)
- Buick Skyhawk (1987-1989)
- Buick Regal (1988-1995)
- Buick Century (1987-1989, 1993-1996)
- Isuzu Hombre (1996-1997)
- Isuzu Ascender (2003-2006)
AUTOLITE AI5245 Customer Reviews
No reviews yet
Be the first to review this product!
AUTOLITE AI5245 Manufacturer Information
Autolite® allows you to go anywhere—without delay—with its comprehensive spark plugs offerings. Although it was initially established as a buggy lamp manufacturer in 1911, it slowly gained recognition as an ignition expert when it developed and introduced the very first Autolite spark plug in 1935. Over the years, the company has reached greater heights, producing and supplying spark plugs and other ignition parts to some of the major automotive manufacturers, such as Chrysler, Studebaker, Willys, and Packard. Headquartered in Lake Forest, Illinois, Autolite is a proud member of the FRAM Group, North America's largest and most diversified group servicing the vehicle replacement parts market.
