(888) 312-8812 Login SignupICON 58755 3.0 Series Remote Reservoir CDCV Front Coilover Kit, for 2007+ Toyota Tundra
Tap to view 4 more
$3,52149
Limited availability at this price!
In Stock
Get it by Monday, Mar 2
ICON 58755 Part Description
Manufacturer
Product Description
07-21 TUNDRA/08-22 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
Features & Benefits
- Adjustable compression valve for tailored ride control
- Remote reservoir improves cooling during high-impact runs
- Boosts suspension travel for off-road flexibility
- Helps keep alignment steady through uneven terrain
- Delivers responsive damping on dirt, gravel, or pavement
- Specifically fits 2007+ Toyota Tundra models
OEM Wheels & Tires Fitment: Yes

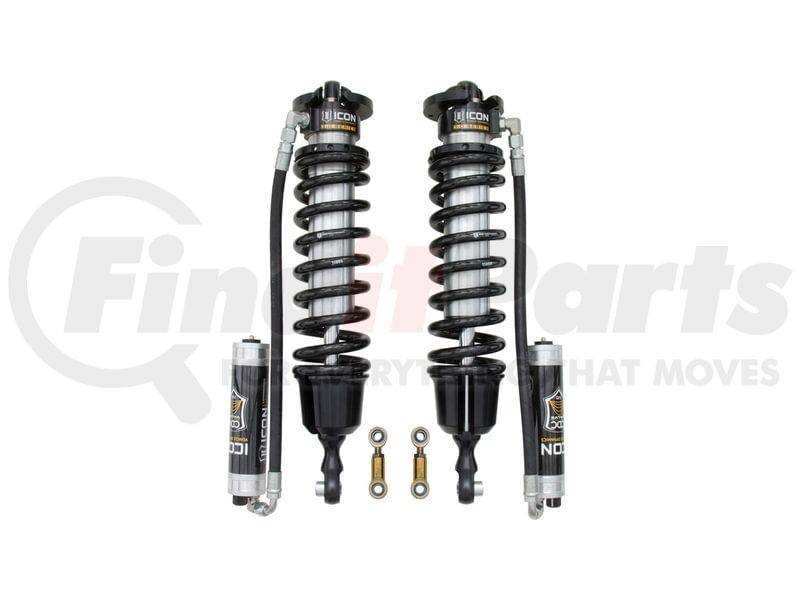

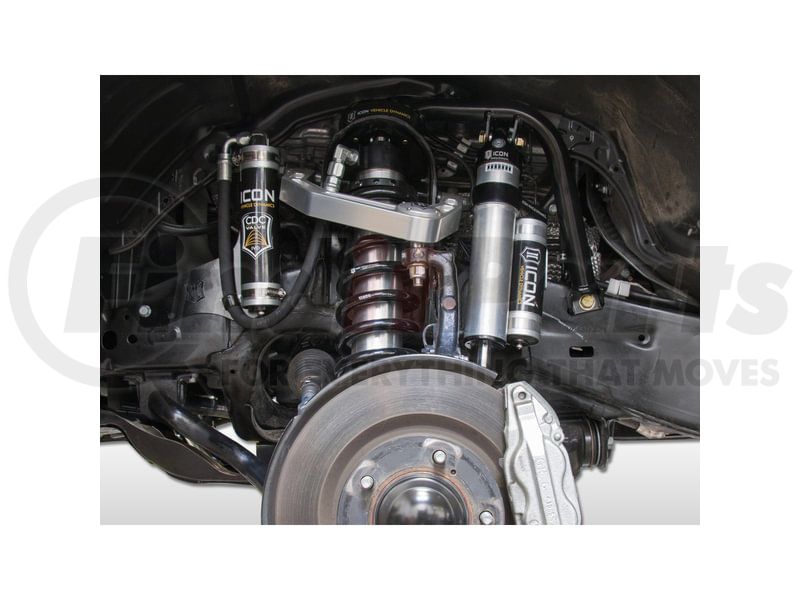

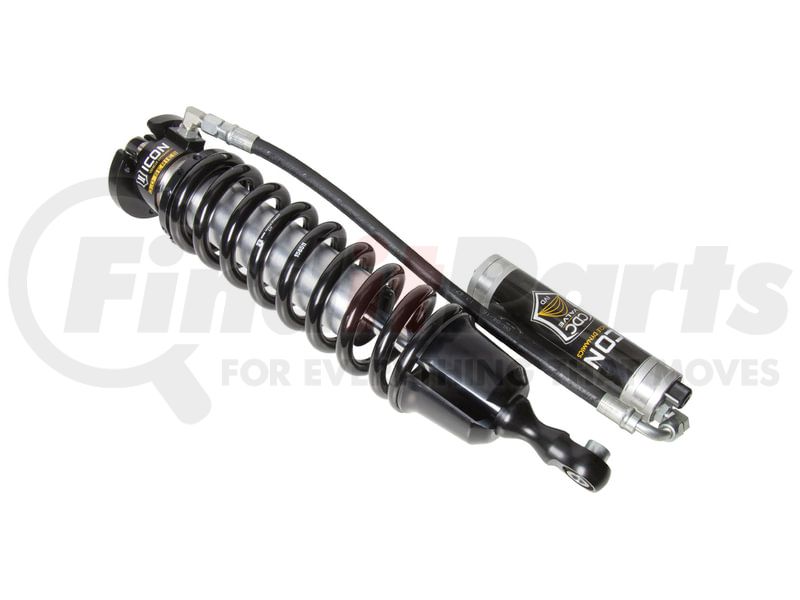

Icon 3.0 Series Remote Reservoir CDCV Front Coilover Kit
Taking your Toyota Tundra off-road? The Icon 3.0 Series Remote Reservoir CDCV Front Coilover Kit gives you customizable suspension performance that adapts to rugged terrain. Its remote reservoir helps control heat buildup, while the compression damping control valve lets you fine-tune ride comfort and responsiveness. When the trail gets rough, the Icon 58755 keeps your truck planted and composed.
ICON 58755 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-on Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 3 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.63 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Ceramic Coated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 25.4 IN |
| 10107 | 600 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 1.63 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 611025 - 07 TUNDRA CO HARDWARE KIT PAIR |
| Shaft Diameter | 1 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 600 |
| Spring Rate Type | Linear |
| Title | ICON 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDCV |
| Travel Length | 6.77 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Rebound: Digressive |
Additional Information
| Warranty Special | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103404554 |
ICON 58755 Fits Vehicles
- Toyota Sequoia (2008-2022)
- Toyota Tundra (2007-2021)
