(888) 312-8812 Login SignupDORMAN TO85341 Steering Tie Rod End
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DORMAN TO85341 Part Description
Manufacturer
Product Description

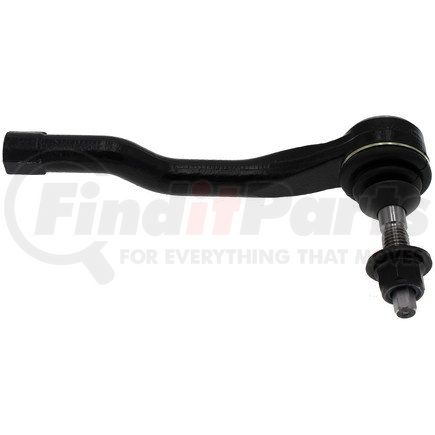

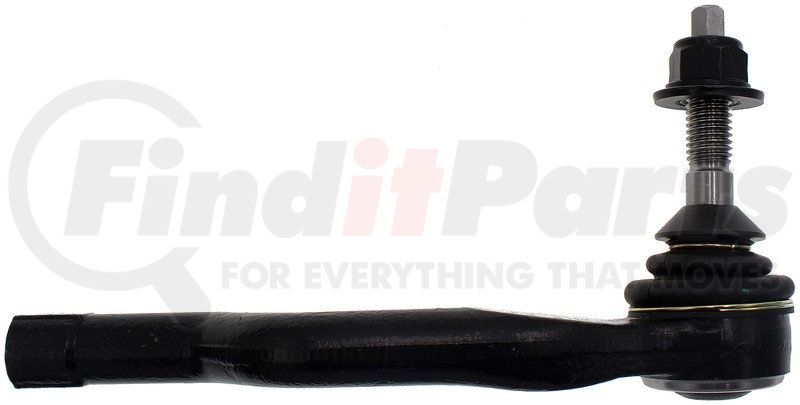

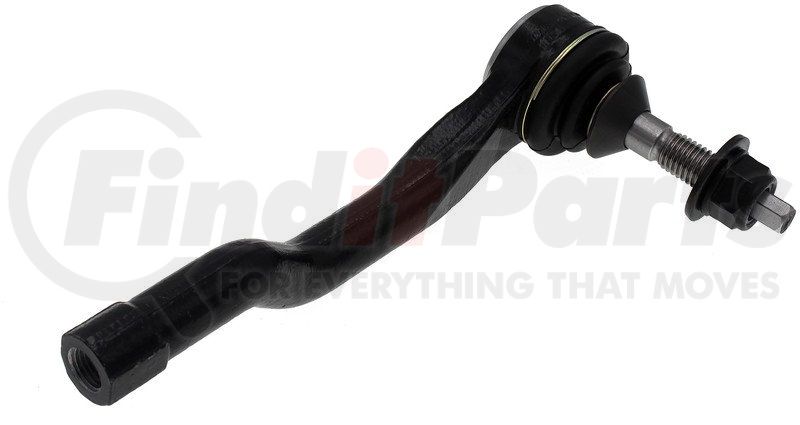

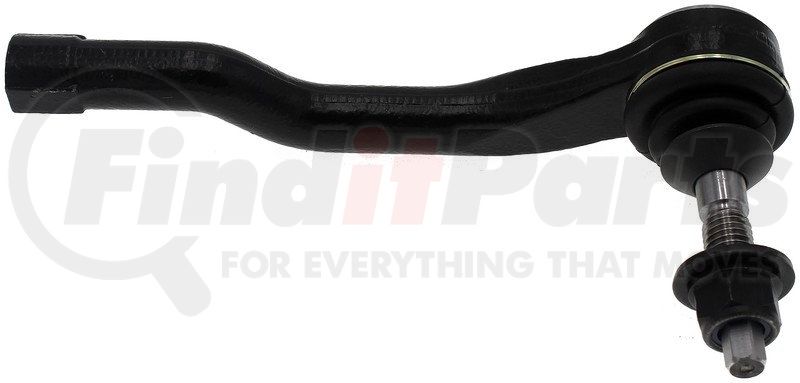

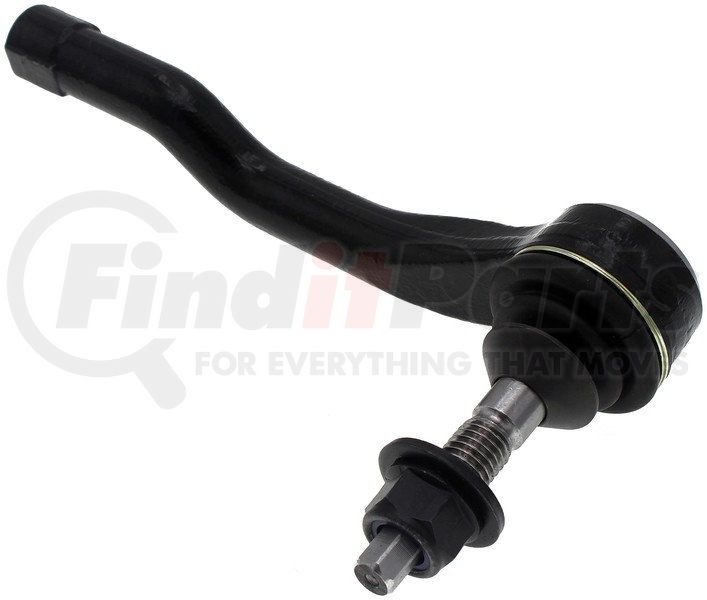

Steering Tie Rod End
Application Summary
Ford Edge 2023-15, Lincoln Continental 2020-17, Lincoln MKX 2018-16, Lincoln Nautilus 2023-19
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
STEERING COMPONENTS
DORMAN TO85341 Specifications
Product Attributes
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14 MM |
| Bolts Included | No |
| Center Mount Hole Quantity | 1 |
| Center Mount Stud Quantity | 1 |
| End 1 Attachment Type | Roscado |
| End 2 Attachment Type | Threaded |
| End 2 Type | Threaded |
| Material | Steel |
| Outside Diameter | 21.05 mm |
| Package Contents | 1 Tie Rod |
| Thread Pitch | 1.5 mm |
| Tie Rod End Thread Diameter | 14 mm |
| Weight | 1.98 lb |
| Length | 203.5 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Finish | Coated |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 48.3 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14 MM |
| Height | 115.6 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 21.05 MM |
| Adjustable | Yes |
| Cone Outside Diameter | 16.5 MM |
| Bearing Material | Polymer |
| End 1 Thread Direction | Counterclockwise (Left) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Regular |
| Stud Type | Cono |
| Head Drive Type | Hex |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador |
| Cantidad de orificios de montaje central | 1 ensamble de manguera del calentador |
| Contenidos del paquete | 1 tuerca |
| Outside Diameter | 21.05 mm MM |
| Thread Pitch | 1.5 mm mm |
| Tie Rod End Thread Diameter | 14 mm mm |
| Cantidad de birlos de montaje central | 1 ensamble de manguera del calentador IN |
| Cantidad de orificios de montaje central | 1 ensamble de manguera del calentador IN |
| Center Mount Hole Quantity | 1 IN |
| Center Mount Stud Quantity | 1 IN |
| Diámetro de la rosca de la terminal de la dirección | 14 mm MM |
| Diámetro la rosca de extremo 1 | 14 mm MM |
| Diámetro la rosca de extremo 2 | 14 mm MM |
| End 1 Thread Diameter | 14 mm MM |
| End 1 Thread Pitch | 1.5 mm mm |
| End 2 Thread Diameter | 14 mm MM |
| End 2 Thread Pitch | 1.5 mm MM |
| Espacio de la rosca del extremo 1 | 1,5mm MM |
| Espacio de la rosca del extremo 2 | 1,5mm MM |
| Paso de rosca | 1,5mm MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00194883224636 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TO85341 Cross References
DORMAN TO85341 Fits Vehicles
- Lincoln Nautilus (2019-2023)
- Ford GT (2017-2020)
- Lincoln Continental (2017-2020)
- Lincoln MKX (2016-2018)
- Ford Edge (2015-2024)
