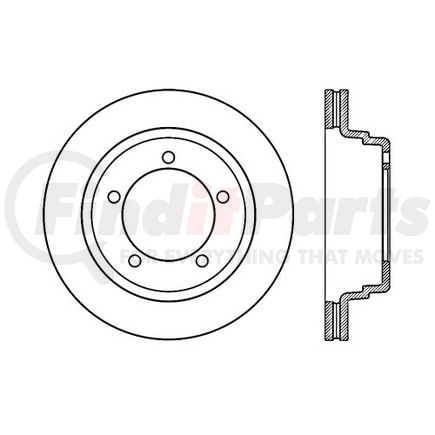

(888) 312-8812 Login SignupCENTRIC 120.80007 Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.80007 Part Description
Manufacturer
Product Description
Premium Brake Rotor
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.80007 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Notes [cntrc] | Stepped Hat Shaped |
| Disc Mounting [cntrc] | Behind the Hub |
| Mounting Bolt Hole Diameter | 0.656 IN |
| Mounting Bolt Hole Diameter | 16.660 MM |
| Mounting Bolt Hole Circle Diameter | 6.752 IN |
| Mounting Bolt Hole Circle Diameter | 171.500 MM |
| Center Hole Diameter | 5.402 IN |
| Center Hole Diameter | 137.200 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Mounting Bolt Hole Quantity | 5 |
| Outside Diameter | 14.748 IN |
| Outside Diameter | 374.600 MM |
| Overall Height | 3.811 IN |
| Overall Height | 96.800 MM |
| Nominal Thickness | 1.344 IN |
| Nominal Thickness | 34.140 MM |
| Discard Thickness | 1.225 IN |
| Discard Thickness | 31.120 MM |
| Hat Finish | Painted |
CENTRIC 120.80007 Cross References
CENTRIC 120.80007 Fits Vehicles
- GMC B6000 (1980-1991)
- Chevrolet B60 (1980-1991)
- GMC C6000 (1988-1989)
- Chevrolet C60 (1988-1989)
- GMC C7000 (1983-1989)
- Chevrolet C70 (1983-1989)
