(888) 312-8812 Login SignupCENTRIC 120.65014 Centric Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.65014 Part Description
Manufacturer
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life

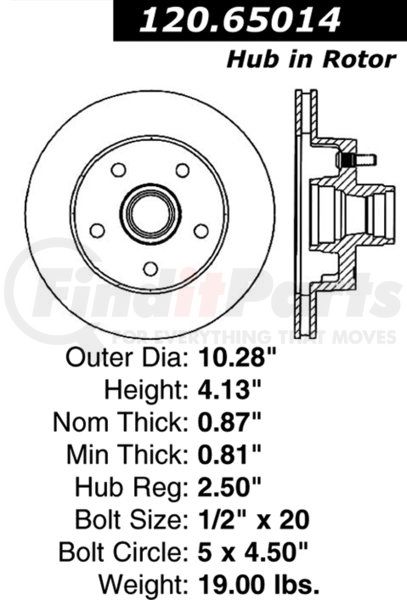

CENTRIC 120.65014 Specifications
Product Attributes
| Inner Seal # [cntrc] | 417.61000 |
| Misc Holes [cntrc] | 0 |
| Outer Bearing # [cntrc] | 410.91002 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 19.000 |
| Inner Bearing # [cntrc] | 410.91006 |
| Weight [cntrc] Kgs | 8.640 |
| Discard Thickness | 20.600 MM |
| Discard Thickness | 0.811 IN |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 105.000 MM |
| Overall Height | 4.134 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 261.000 MM |
| Rotor Outside Diameter | 10.276 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 63.600 MM |
| Center Hole Diameter | 2.504 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890043218 |
CENTRIC 120.65014 Cross References
| Brand | Part Number |
|---|---|
| 6865, BD125805, BD60663 | |
| N/A | BD125805, BD60663, 0832701, 120.65014, 6492160, 64 92 160, 5447, 5447G, 106624, E3TZ1102A, E5TZ1102A, F37Z1102A, F47Z1102A, 1L3Z1104AA, ZZM033251, ZZM033251A, YL5Z1V102EA, 102470E, 141264, 141886, 4885865, 85865, 593, AR8514, D6086, E8403, E12570019, 616068, R3995, YH141264, 27032, X50278, BR1234, 8942014, 65065, 177662, 60054110 |
| RAYBESTOS | 6865, 6865R |
| Raybestos Brakes | 6865, 6865R |
| WAGNER | BD60663 |
CENTRIC 120.65014 Fits Vehicles
- Mazda B4000 (1994)
- Mazda B3000 (1994)
- Mazda B2300 (1994)
- Ford Ranger (1983-1994)
- Ford Aerostar (1986-1991)
