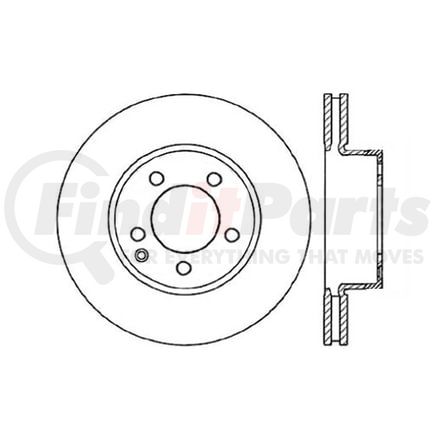

(888) 312-8812 Login SignupCENTRIC 120.35109 Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.35109 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.35109 Specifications
Product Attributes
| Vane Style [cntrc] | Curved |
| Misc Holes [cntrc] | 1 |
| Hat Id [cntrc] In | 6.059 |
| Weight [cntrc] Lbs | 18.600 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 153.900 |
| Weight [cntrc] Kgs | 8.450 |
| Discard Thickness | 25.400 MM |
| Discard Thickness | 1.000 IN |
| Nominal Thickness | 1.098 IN |
| Nominal Thickness | 27.900 MM |
| Hat Finish | Painted |
| Overall Height | 64.500 MM |
| Overall Height | 2.539 IN |
| Outside Diameter | 11.614 IN |
| Outside Diameter | 295.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 67.000 MM |
| Center Hole Diameter | 2.638 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.602 IN |
| Stud/Lug Hole Diameter | 15.300 MM |
CENTRIC 120.35109 Cross References
| Brand | Part Number |
|---|---|
| 829352675502 | |
| NEOTEK | 106596GF |
| PRONTO | BR90088402 |
| RAYBESTOS | 980789, 980789FZN, 980789R |
| WAGNER | BD180038E, BD180038 |
CENTRIC 120.35109 Fits Vehicles
- Mercedes-Benz C250 (2010-2015)
- Mercedes-Benz C300 (2008-2012)
