(888) 312-8812 Login SignupCENTRIC 120.34072 Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.34072 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

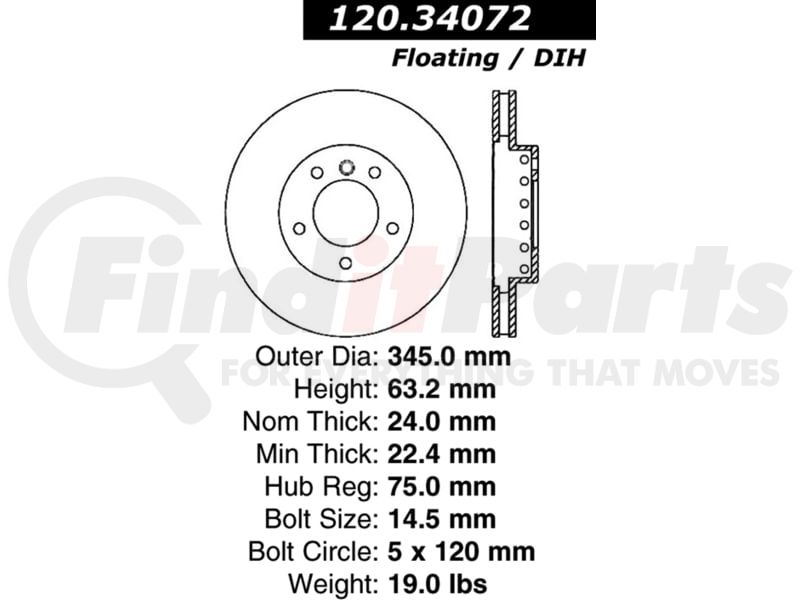

CENTRIC 120.34072 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | Vented Hat |
| Weight [cntrc] Kgs | 8.640 |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Lbs | 19.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 22.400 MM |
| Discard Thickness | 0.882 IN |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24.000 MM |
| Hat Finish | Painted |
| Overall Height | 63.200 MM |
| Overall Height | 2.488 IN |
| Outside Diameter | 13.583 IN |
| Outside Diameter | 345.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 185.000 MM |
| Nominal Drum Diameter | 7.283 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.571 IN |
| Stud/Lug Hole Diameter | 14.500 MM |
CENTRIC 120.34072 Cross References
| Brand | Part Number |
|---|---|
| 829352670071 | |
| WAGNER | BD126516, BD126516E |
CENTRIC 120.34072 Fits Vehicles
- BMW 535i (2008-2010)
- BMW 650i (2006-2010)
- BMW 550i (2006-2010)
- BMW 645Ci (2004-2005)
- BMW 545i (2004-2005)
