(888) 312-8812 Login SignupCENTRIC 120.33127 Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.33127 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

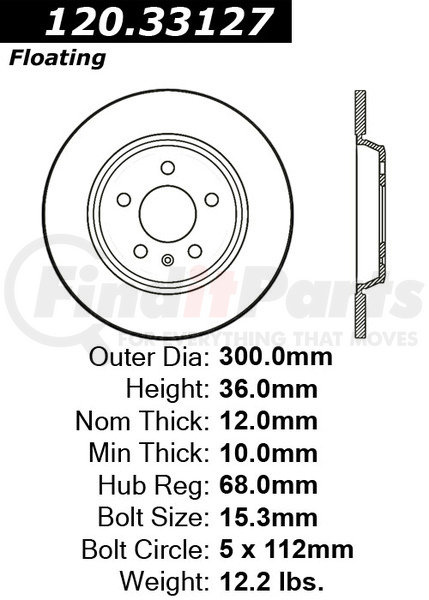

CENTRIC 120.33127 Specifications
Product Attributes
| Weight [cntrc] Kgs | 5.550 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 168.400 |
| Weight [cntrc] Lbs | 12.200 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 1 |
| Hat Id [cntrc] In | 6.630 |
| Discard Thickness | 0.394 IN |
| Discard Thickness | 10.000 MM |
| Nominal Thickness | 12.000 MM |
| Nominal Thickness | 0.472 IN |
| Hat Finish | Painted |
| Overall Height | 1.417 IN |
| Overall Height | 36.000 MM |
| Outside Diameter | 300.000 MM |
| Outside Diameter | 11.811 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.602 IN |
| Stud/Lug Hole Diameter | 15.300 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890418924 |
CENTRIC 120.33127 Cross References
| Brand | Part Number |
|---|---|
| 829352692028 | |
| NEOTEK | 106067GF |
| PRONTO | BR90080802 |
| RAYBESTOS | 980694, 980694R |
| WAGNER | BD180106E, BD180106 |
