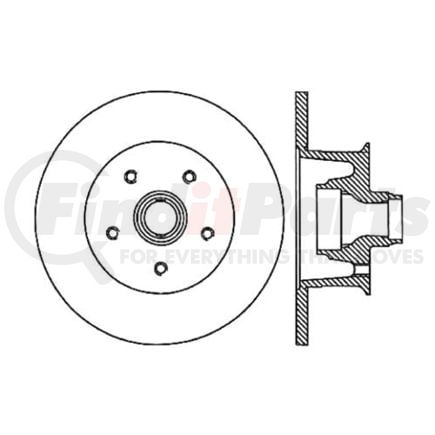

CENTRIC 120.33010 Part Description
Manufacturer

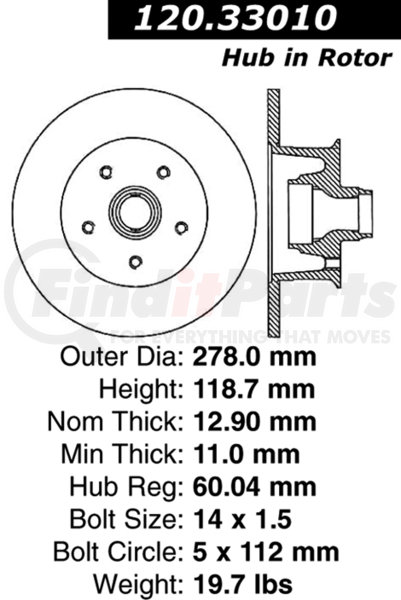

CENTRIC 120.33010 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 8.950 |
| Inner Race # [cntrc] | 416.90000 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 19.700 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Inner Bearing # [cntrc] | 415.90000 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Bearing # [cntrc] | 410.91002 |
| Inner Seal # [cntrc] | 417.90003 |
| Discard Thickness | 11.000 MM |
| Discard Thickness | 0.433 IN |
| Nominal Thickness | 12.900 MM |
| Nominal Thickness | 0.508 IN |
| Hat Finish | Coated |
| Overall Height | 118.700 MM |
| Overall Height | 4.673 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 278.000 MM |
| Rotor Outside Diameter | 10.945 in |
| Solid Or Vented Type Rotor | Solid |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 60.000 MM |
| Center Hole Diameter | 2.362 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 14.000 MM |
| Stud/Lug Hole Quantity | 5 |
CENTRIC 120.33010 Cross References
CENTRIC 120.33010 Fits Vehicles
- Volkswagen Vanagon (1980-1985)
