(888) 312-8812 Login SignupCENTRIC 120.20002 Centric Premium Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.20002 Part Description
Manufacturer
Product Description

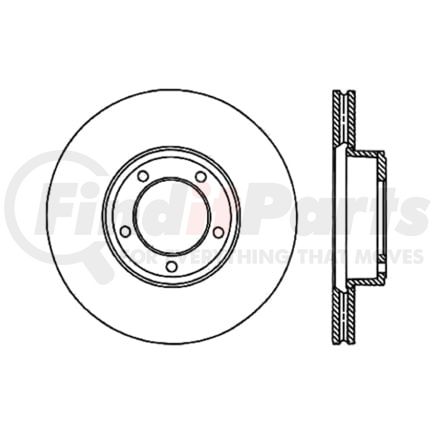

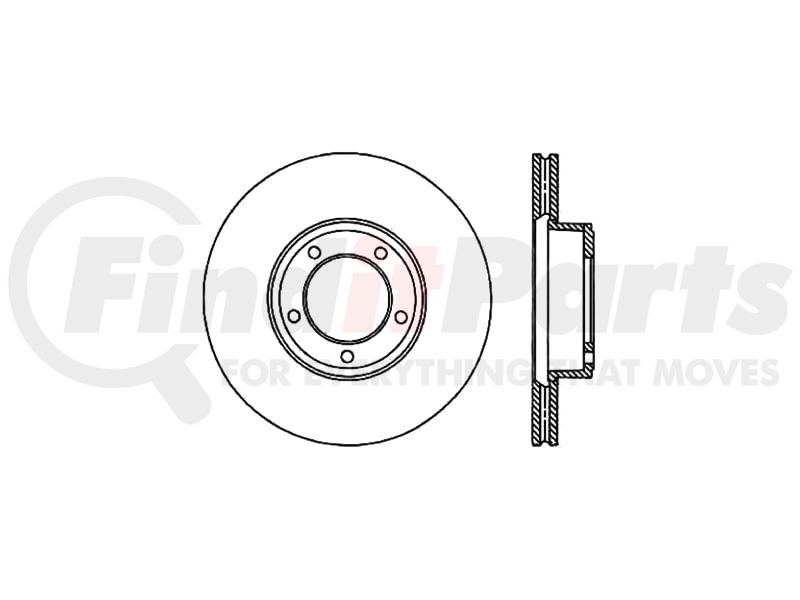

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

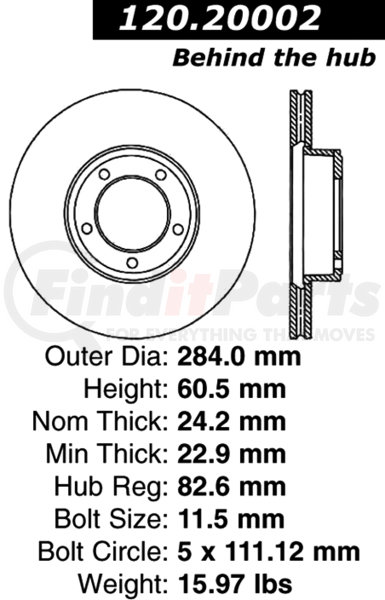

CENTRIC 120.20002 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 7.260 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Lbs | 15.970 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 0.902 IN |
| Discard Thickness | 22.900 MM |
| Nominal Thickness | 0.953 IN |
| Nominal Thickness | 24.200 MM |
| Hat Finish | Painted |
| Overall Height | 60.500 MM |
| Overall Height | 2.382 IN |
| Outside Diameter | 11.181 IN |
| Outside Diameter | 284.000 MM |
| Mounting Bolt Hole Quantity | 5 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.252 IN |
| Center Hole Diameter | 82.600 MM |
| Mounting Bolt Hole Circle Diameter | 4.374 IN |
| Mounting Bolt Hole Circle Diameter | 111.100 MM |
| Mounting Bolt Hole Diameter | 11.500 MM |
| Mounting Bolt Hole Diameter | 0.453 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | DE |
| UPC | 00805890074885 |
CENTRIC 120.20002 Cross References
| Brand | Part Number |
|---|---|
| 96622, BD125075 | |
| N/A | BD125075, 0831487, 64 33 010, 6433010, 3479, 34016G, 3479G, 106756, BLM776, C32763E, JLM728, C32764, C32764E, C41924, C41942, CAC2647, JLM727, JLM729, JLM776, 141515, 4886622, 86622, EBR028, D17395, 1230124, 1.2301.2.4, 25233, X50534, BR1264, 96622, DDF164, DF1872, 8970005, 60020001, 290.2251.00 |
| RAYBESTOS | 96622, 96622R |
| WAGNER | BD125075 |
CENTRIC 120.20002 Fits Vehicles
- Jaguar V12 (1974)
- Jaguar XKE (1971-1974)
- Jaguar XJS (1976-1996)
- Jaguar XJRS (1993)
- Jaguar XJR (1995-1997)
- Jaguar XJ6 (1973-1987)
- Jaguar XJ12 (1973-1979, 1981-1986)
- Jaguar Vanden Plas (1982-1987)
