(888) 312-8812 Login SignupSPICER 5-760X Universal Joint
$5299
Limited availability at this price!
In Stock
Get it by Friday, Mar 20
SPICER 5-760X Part Description
Manufacturer
Product Description
Axle Shaft Universal Joint; Non-Greaseable
Features & Benefits
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.

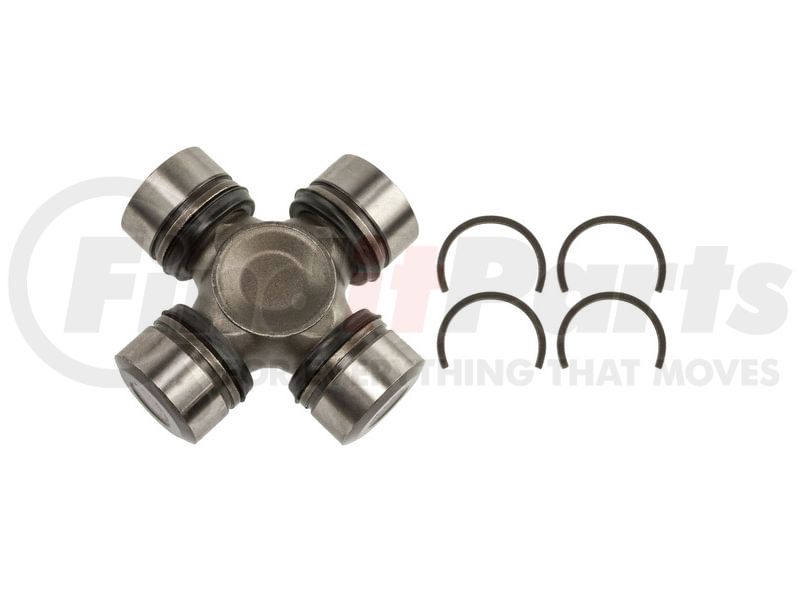

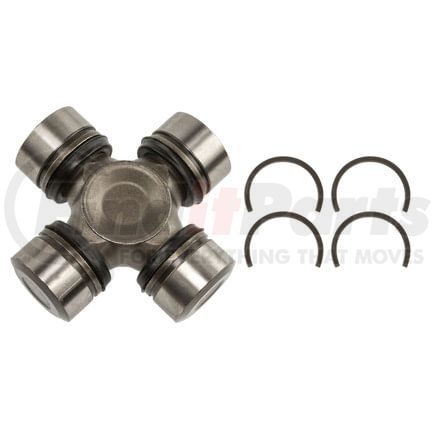

Universal Joint
SPICER 5-760X Specifications
Product Attributes
| Length B (In) | 2.188 IN |
| Length B (mm) | 55.575 MM |
| Mounting Hardware Included | No |
| Distance Btw Snap Ring Grooves | 2.188 |
| Distance Btw Snap Ring Grooves (ISR) (2) | 2.188 |
| Material | Steel |
| Bearing Cap Diameter (1) | 1.188 IN |
| OEM Mfg | Spicer |
| OEM Series | 1310WJ |
| Type | ISR Style |
| Bearing Cap Diameter (2) | 1.188 IN |
| Bearing Cap Type | Round with ISR Groove |
| Snap Ring Included | Yes |
| Snap Ring Type | Internal |
| Grease Zerk Included | Not Required |
| Pre Greased | Yes |
| Bearing Cap Finish | Ground |
| Coating Type | None |
| Grease Type | N.L.G.I. Grade 2 |
| Model Number | Spicer 1310WJ |
| Seal Color/Finish | Black |
| Seal Material | Rubber |
| Greaseable | No |
| Bearing Cap Diameter A (mm) | 30.175 MM |
| Bearing Cap Diameter B (mm) | 30.175 MM |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Hardware Included | No |
| Length A (In) | 2.188 IN |
| Length A (mm) | 55.575 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708998175 |
| UPC | 00023913121044 |
| VMRS Code | 024002046 |
SPICER 5-760X Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U0104, 45U0114 |
| Chrysler | 04137757, 3744918, 4137 757, 4137757, 5083 670AA, 5083670AA, J8124589, J8126638 |
| DANA | 25-760X, 5-760XC |
| Daimler Truck North America | SP 5 760X, SP 5 760XHP |
| Dana Commercial Vehicle Service Parts | 5-297-1X, 5-760XSB |
| Freightliner | SP 5 760X, SP 5 760XHP |
| GMB | 2100297 |
| General Motors | 6273940 |
| International Harvester (IHC) | 5760X, D5760X, E5760X |
| MOOG | 371 |
| MOOG Chassis Products | 371, 377 |
| Mack | 2104-5760X |
| MasterPro | 371, 377 |
| McNeilus | 3KK653 |
| Meritor | CP2971X |
| NEAPCO | 1-0297 |
| Navistar | 459395C91, 5297X, 5760X, D5297X, D5760X, DS5760X, E5760X |
| Neapco OE Series | 1-0297, 1-0298 |
| Paccar Parts | 5-760X |
| Peterbilt | 3KK653 |
| Precision | 371, 377 |
| SKF | 1-0297, 1-0298, UJ371, UJ377 |
| Spicer | 5-3226X |
| UAP | 5-760X |
| Volvo | SP 5760X |
| WORLD AMERICAN | 5-297XR, 5-297-1XR |
