SPICER 5-676X Part Description
Manufacturer
Product Description

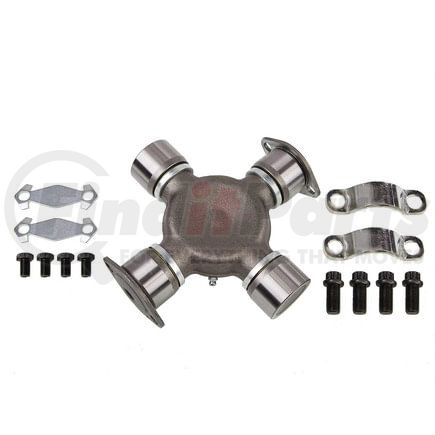

Universal Joint Greaseable; Spicer 1810 Series Half Round
Features & Benefits
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature
U - JOINT KIT *D
SPICER 5-676X Specifications
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (1) | 1.938 IN |
| Bearing Plate (1) | 7.547 IN |
| OEM Mfg | Spicer |
| OEM Series | 1810 |
| Type | HR Style |
| Bearing Cap Diameter (2) | 1.938 IN |
| Distance Between Bolts (1) | 2.437 IN |
| Bearing Cap Type | Bearing Plate X Round |
| Grease Zerk Included | Yes |
| Pre Greased | No |
| Grease Fitting Location | side of Cross |
| Greaseable | Yes |
| Bearing Cap Diameter A (mm) | 49.225 MM |
| Bearing Cap Diameter B (mm) | 49.225 MM |
| Bearing Cap Type A | Bearing Plate |
| Bearing Cap Type B | Round |
| Hardware Included | Yes |
| Length A (In) | 7.547 IN |
| Length A (mm) | 191.694 MM |
| Length B (In) | 7.547 IN |
| Length B (mm) | 191.694 MM |
| Mounting Hardware Included | Yes |
| Sr(2)brng Cap To Brng Cap(osr) | 7.547 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8708996820 |
| UPC | 00023913121822 |
| VMRS Code | 024002046 |
SPICER 5-676X Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U2376, 45U2382 |
| Blue Bird | 1889864 |
| Daimler Truck North America | SP 5 676X, SP 5 676XBULK, SP 5 676XHP |
| Dana Commercial Vehicle Service Parts | 2104-5676X, 5-510X |
| Freightliner | SP 5 676X, SP 5 676XBULK, SP 5 676XHP |
| GMB | 2300676 |
| Gillig | 82-16538 |
| International Harvester (IHC) | 1696916C91, 5676X, D5676X, E5676X, SB5676X, SD5676X |
| MOOG | 878 |
| MOOG Chassis Products | 478, 878 |
| Mack | 2104-5676X, 3918981 |
| MasterPro | 478, 878 |
| McNeilus | 2FP112 |
| Meritor | M676X |
| Midwest | 5-676XR |
| Motor Coach Industries | 14L-1-144, 5-676X |
| NEAPCO | 6-0676, 6-0676Q, 6-0676GXL |
| NEWSTAR | S-C474 |
| Navistar | 1658882C91, 1696916C91, 5676X, D5510X, D5676X, DS5676X, E5676X, SD5676X |
| Neapco OE Series | 60676, 6-0676, 6-0676GXL, 6-0676PQ, 6-0676Q |
| Orion | G0775020AB |
| Ottawa | 90029752 |
| Paccar Parts | 5-676X |
| Peterbilt | 2FP112, 2-FP-112, 3106171 |
| Pierce | 2FP112 |
| Precision | 478, 878 |
| Prevost | 195698 |
| Rockwell International | R-676X |
| SKF | 6-0676, 6-0676PQ, 6-0676Q, UJ478, UJ878 |
| SVL | 15-676X |
| UAP | 5-676X |
| Volvo | 2104-5676X, 3918981, SP 5 676X, SP 5676X, SP5676X |
| WORLD AMERICAN | 5-676XR |
| Workhorse | 3918981 |
