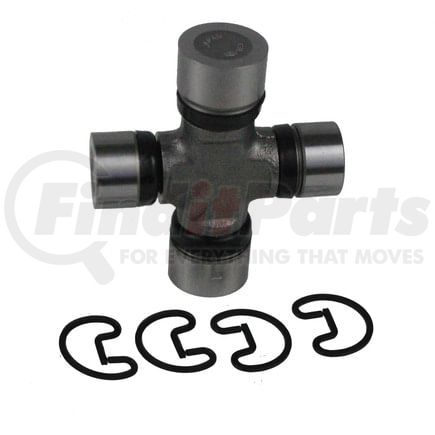

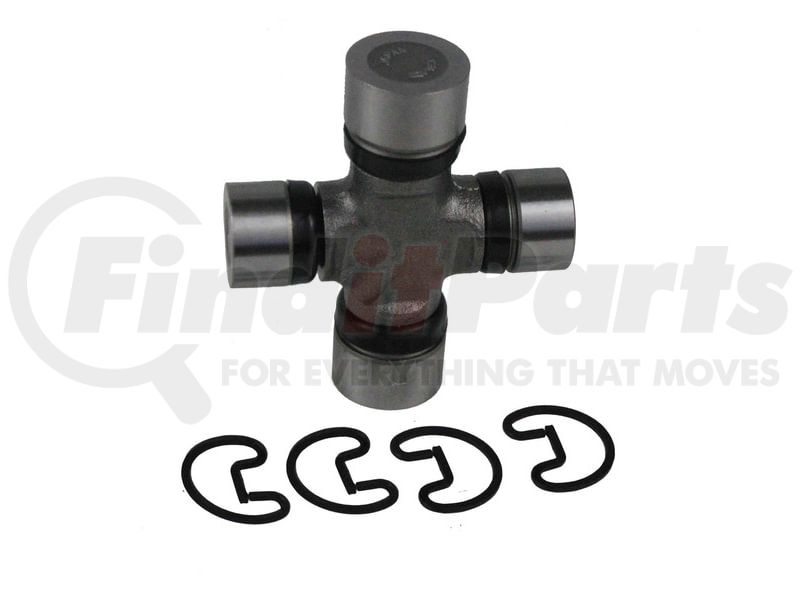

SPICER 5-460X Part Description
Manufacturer
Product Description
Conversion Universal Joint Greaseable 1310 to 1350 Series
Features & Benefits
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
Universal Joint
SPICER 5-460X Specifications
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (1) | 1.062 IN |
| OEM Mfg | Spicer |
| OEM Series | 1310/1350 |
| Type | OSR Style |
| Bearing Cap Diameter (2) | 1.188 IN |
| Converts This Series | 1310 |
| To This Series | 1350 |
| Bearing Cap Type | Round |
| Snap Ring Included | Yes |
| Snap Ring Type | External |
| Grease Zerk Included | Yes |
| Pre Greased | No |
| Grease Fitting Location | Side of Cross |
| Greaseable | Yes |
| Bearing Cap Diameter A (mm) | 26.975 MM |
| Bearing Cap Diameter B (mm) | 30.175 MM |
| Bearing Cap Type A | OSR |
| Bearing Cap Type B | OSR |
| Hardware Included | No |
| Length A (In) | 3.219 IN |
| Length A (mm) | 81.762 MM |
| Length B (In) | 3.625 IN |
| Length B (mm) | 92.075 MM |
| Mounting Hardware Included | No |
| Sr(1)brng Cap To Brng Cap(osr) | 3.219 |
| Sr(2)brng Cap To Brng Cap(osr) | 3.625 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00023913126346 |
| VMRS Code | 024002046 |
SPICER 5-460X Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U0127 |
| DANA | 25-460X |
| Daimler Truck North America | SP 5 460X, SP 5 460XHP |
| Dana Commercial Vehicle Service Parts | 2104-5460X |
| EXCEL FROM RICHMOND | 95-0460 |
| Freightliner | SP 5 460X, SP 5 460XHP |
| GMB | 2400358 |
| International Harvester (IHC) | D5460X, E5460X, 5460X |
| MOOG | 348 |
| MOOG Chassis Products | 348 |
| Mack | 2104-5460X |
| MasterPro | 348 |
| McNeilus | 2GN538 |
| Meritor | CP460X |
| NEAPCO | 3-3140 |
| Navistar | 5460X, D5460X, DS5460X, E5460X |
| Neapco OE Series | 3-3140 |
| Paccar Parts | 5-460X |
| Peterbilt | 2GN538 |
| Precision | 348 |
| SKF | 3-3140, UJ348 |
| UAP | 5-460X |
| Volvo | SP 5460X, SHP5-460X, 2104-5460X |
