(888) 312-8812 Login SignupSPICER 3-2-119 DL-FY-1350-PDM2.7500 FFC1.5620
$5549
3 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
SPICER 3-2-119 Part Description
Manufacturer
Product Description

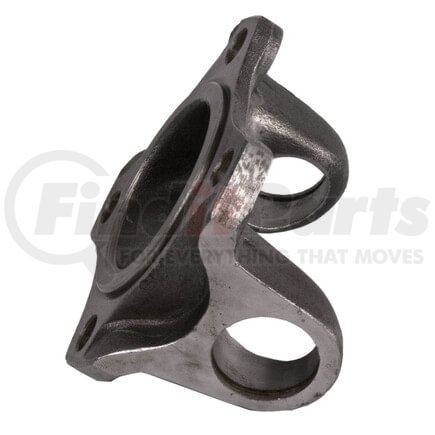

DRIVE SHAFT FLANGE YOKE
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested for unparalleled reliability.
- Strength and durability for long life.
- Dana engineering-approved for fit, form and function
DL-FY-1350-PDM2.7500 FFC1.5620
SPICER 3-2-119 Specifications
Product Attributes
| Series | 1350 |
| Material | Steel |
| Number of Bolt Holes | 4 |
| Design | Rectangular |
| Bolt Circle Dia. In. (b) | 3.750 |
| Bolt Hole Dia. In (b) | .438 - DRILLED |
| Flange Face To C/l In. (g) | 1.562 |
| Flange Or Swing Dia. In. (a) | 4.625 |
| Outside Yoke Dimension In.(e) | 3.875 |
| Pilot Dia. M=male F=female (c) | 2.750 - MALE |
| Yoke Bearing Dimension In. (d) | 1.888 |
| Joint Angle #1 | 2 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913229009 |
| VMRS Code | 024002016 |
SPICER 3-2-119 Cross References
| Brand | Part Number |
|---|---|
| AGCO | AG516957 |
| American Lafrance | SP 3 2 119 |
| Cameco | 0270006409 |
| Caterpillar | 9X-0509 |
| Clarke | 855956 |
| Cusco Fab | DR014167 |
| Daimler Truck North America | SP 3 2 119, SP 3 2 119HP |
| Dana Commercial Vehicle Service Parts | 2104-32119, 3-2-449 |
| Dresser | 82149618 |
| Eagle | 05-0739-001 |
| Elgin | 42605-30 |
| Freightliner | SP 3 2 119, SP 3 2 119HP |
| GRADALL | 83743011 |
| Hyster | 0023465 |
| Ingersoll Rand | 82149618 |
| International Harvester (IHC) | 32119, 646516R1, D32119, E32119 |
| John Deere | N119323 |
| Mack | 2104-32119 |
| McNeilus | 135DS1 |
| Meritor | 135N2119 |
| Midwest | 3-2-119R |
| NACCO | 0023465 |
| NEAPCO | N3-2-119 |
| Navistar | 32119, 646516R1, D32119, DS32119, E32119 |
| Neapco OE Series | 6230001, N3-2-119 |
| New Holland Agriculture | V34029 |
| New Holland Construction | S80726, V34029 |
| Paccar Parts | 3-2-119, 69035 |
| Peterbilt | 135DS1 |
| Pettibone | DSS0065 |
| Rockwell International | 135N-2-119 |
| Sandvik | 293C5A1, 32119, 3600260, 3606060, 3606260 |
| Skyjacker | 128790 |
| Steiger Tractor | S80726 |
| Terex | 0391108065, 855956, 91108065 |
| UAP | 3-2-119 |
| Vermeer | 267508001 |
| Volvo | 2104-32119, 30006-5063, SP 32119 |
| WORLD AMERICAN | 3-2-119R |
