FRAM XG8081 Part Description
Manufacturer
Product Description
FRAM, XG8081, Oil Filter
Features & Benefits
- Proven protection for up to 20,000 miles (32,000 kilometers)
- Synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today's engines

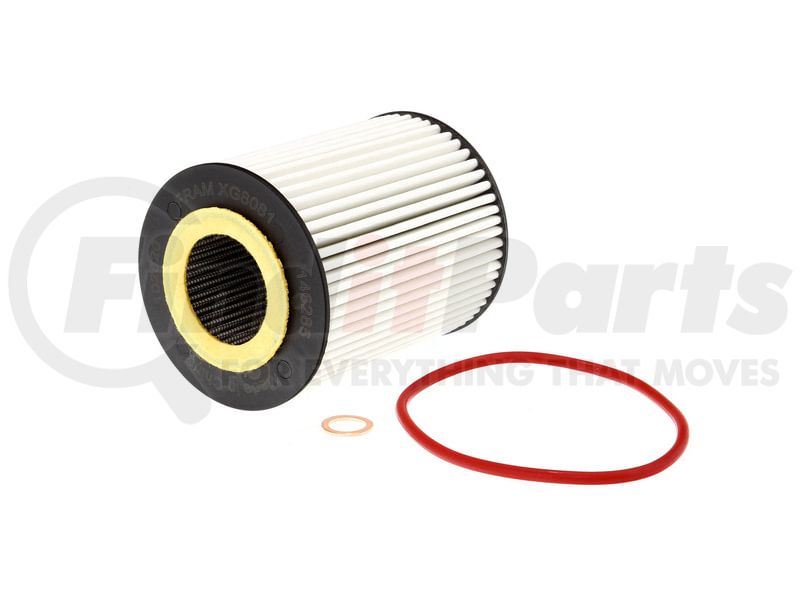

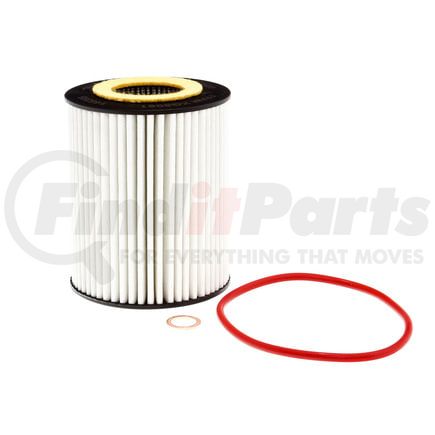

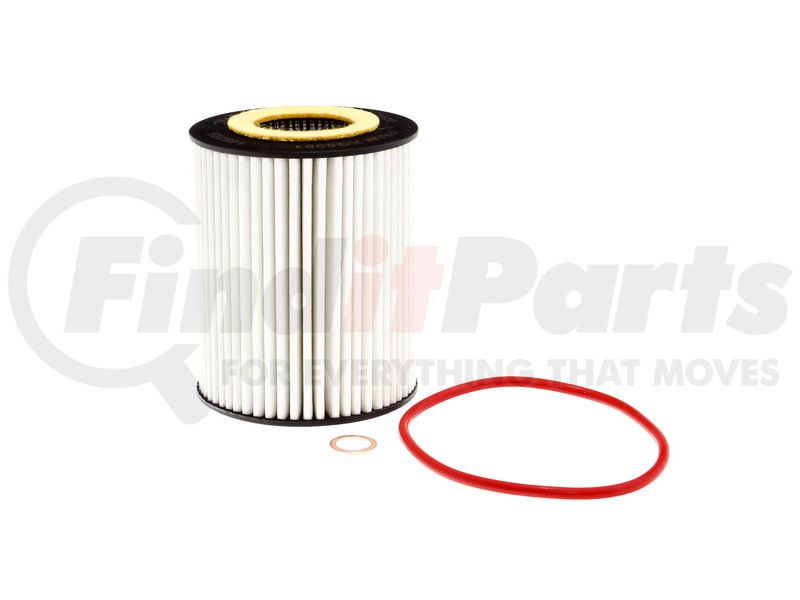

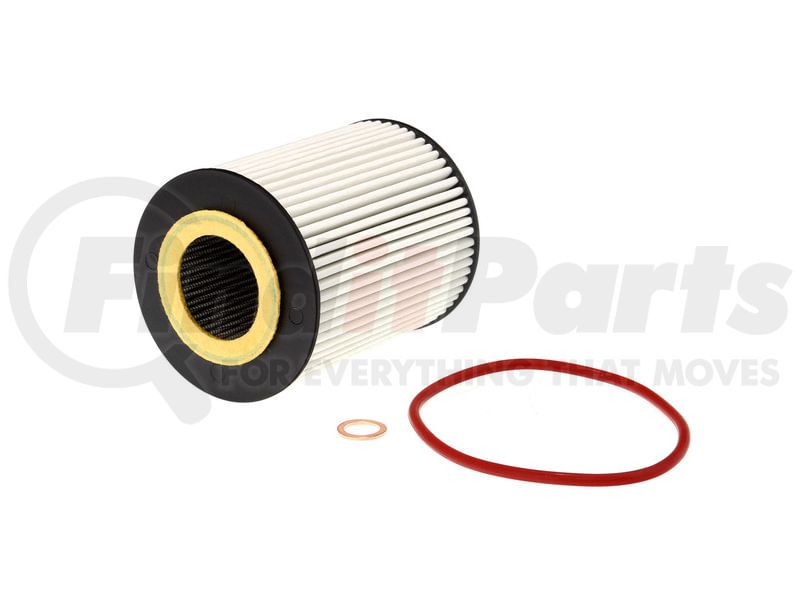

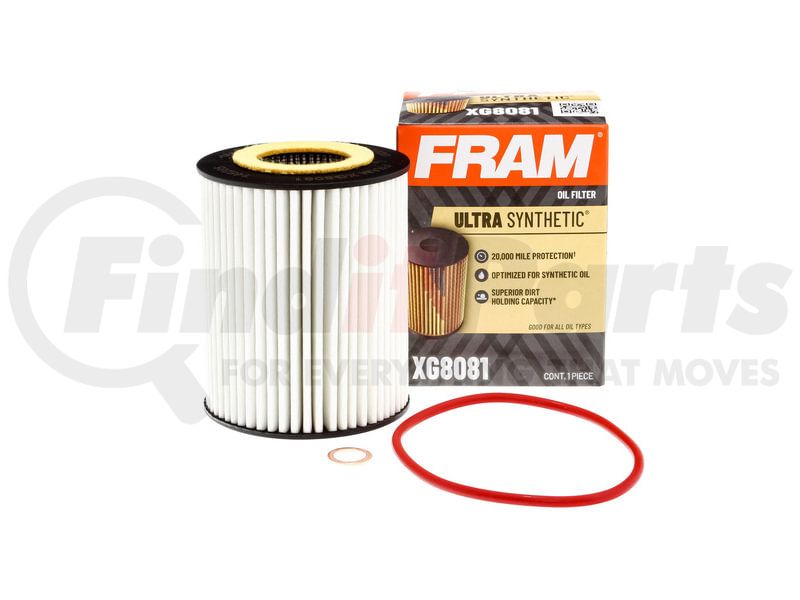

Cartridge Oil Filter
FRAM XG8081 Specifications
Product Attributes
| Filter Media Material | Synthetic |
| Height | 4.094 IN |
| Gasket Or Seal Included | Yes |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Gasket Type | Cover |
| Grade | Ultimate |
| Grade Type | Premium |
| Housing Color | NA |
| Inside Diameter Bottom | 1.656 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 3.622 IN |
| O-ring Outside Diameter | 3.783 IN |
| O-ring Thickness | 0.161 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 3.250 in |
| Outer Diameter Top | 3.250 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.656 in |
| Torque Nut | No |
| Washer Inside Diameter | 0.472 IN |
| Washer Outside Diameter | 0.656 IN |
| Washer Thickness | 0.472 IN |
| Bottom Inside Diameter | 1.656 IN |
| Grade Type | Premium |
| Outside Diameter Top | 3.250 in |
| Replaceable Filter | Yes |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100572158 |
| UNSPSC | 15121501 |
FRAM XG8081 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF1073, PF2248G |
| Auto Extra | 61851223 |
| BMW | 11 42 1 427 908, 11 42 1 740 534, 11 42 7 509 430, 11 42 7 512 300, 11 42 7 512 301, 11 42 7 512 430, 75 09 4 30 |
| Baldwin | P7138 |
| Beck/Arnley | 041-8149 |
| Big A | 91609 |
| Bosch | 72202 |
| Carquest | 85223, R85223, R85223MP |
| Carquest Premium Filters | 85223 |
| Casite Filters | CF482 |
| Certified | CCH8081 |
| Champ | P8170 |
| Champion | COC8081 |
| Champion Filters | COC8081 |
| Citgo Petroleum | P8170 |
| Defense Filters | DL8081 |
| Driveworks | DW-5247 |
| ECOGARD | X5247 |
| FRAM Drive | FD8081 |
| FRAM Titanium | FS8081 |
| FVP | G1223 |
| Factory Motor Parts | G1223 |
| Firestone | P8170 |
| Group 7 | V5247 |
| Hastings | LF482, LF482F |
| Installer Edge | AL8081 |
| Jiffy Lube | HL8081 |
| K&N | PS-7007 |
| LUBER-FINER | P8170 |
| MAHLE | OX154/1DECO |
| MANN-HUMMEL FILTERS | HU925/4X |
| Mann-Filter | HU925/3X, HU925/4, HU925/4X |
| MicroGard | MGL8081, MGL51223 |
| Mighty Distributing System | M8170 |
| Mileguard | MO8081 |
| Mobil | L25247, P8170 |
| Mobil 1 | M1C-252, PH5247, M1C-252A |
| MotoMaster | MCH8081 |
| NAPA | 1223 |
| PUROLATOR | PL25247, PBL25247, TL25247 |
| Parts Master | 61223, 61223BP |
| Parts Plus | P8170 |
| Pennzoil | PZ-63, PZ63 |
| Pentius | PCB8081 |
| Performax | PO-63 |
| Premium Guard | PG5247 |
| Promotive | PH5247 |
| Pronto | PO-5247 |
| Purolator | L25247 |
| Purolator BOSS | PBL25247 |
| Purolator PureONE | PL25247 |
| PurolatorONE | PL25247 |
| Quaker State | QS8081 |
| Qualitee International | HL8081 |
| STP | S8081 |
| STP Filters | S8081, S8081XL |
| Service Champ | CF5247 |
| Service Pro | CF5247, M5247 |
| Shell - Archived | L25247, SH52 |
| VIPER | 8081 |
| Valvoline | LC-8170 |
| WIX FILTERS | WIX FILTERS, 51223 |
| Warner | P8170 |
| Warner Filters | P8170 |
| Wix | 51223 |
FRAM XG8081 Fits Vehicles
- Suzuki Aerio (2002)
- BMW 525xi (2006)
- Ford GT (2005-2006)
- BMW 320i (2001-2005)
- BMW 530xi (2006)
- BMW X3 (2004-2006)
- BMW 328Ci (2000)
- BMW X5 (2001-2006)
- BMW 530i (2001-2006)
- BMW 330i (2001-2006)
- BMW 525i (2001-2006)
- BMW 325Ci (2001-2006)
- BMW 330Ci (2001-2006)
- BMW 328is (1996-1999)
- BMW 328i (1996-2000)
- BMW 325i (2001-2006)
- BMW 323is (1998-1999)
- BMW 323i (1998-2000, 2006)
- BMW Z4 (2003-2005)
- BMW Z3 (1997-2002)
- BMW 330xi (2001-2006)
- BMW 528i (1997-2000)
- BMW 323Ci (2000)
- BMW 325xi (2001-2006)
FRAM XG8081 Customer Reviews
No reviews yet
Be the first to review this product!
FRAM XG8081 Questions & Answers
No questions yet
Be the first to ask a question about this product!
